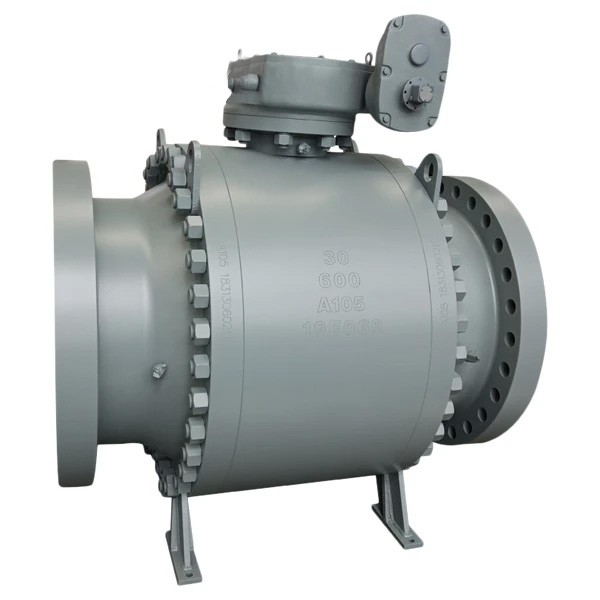

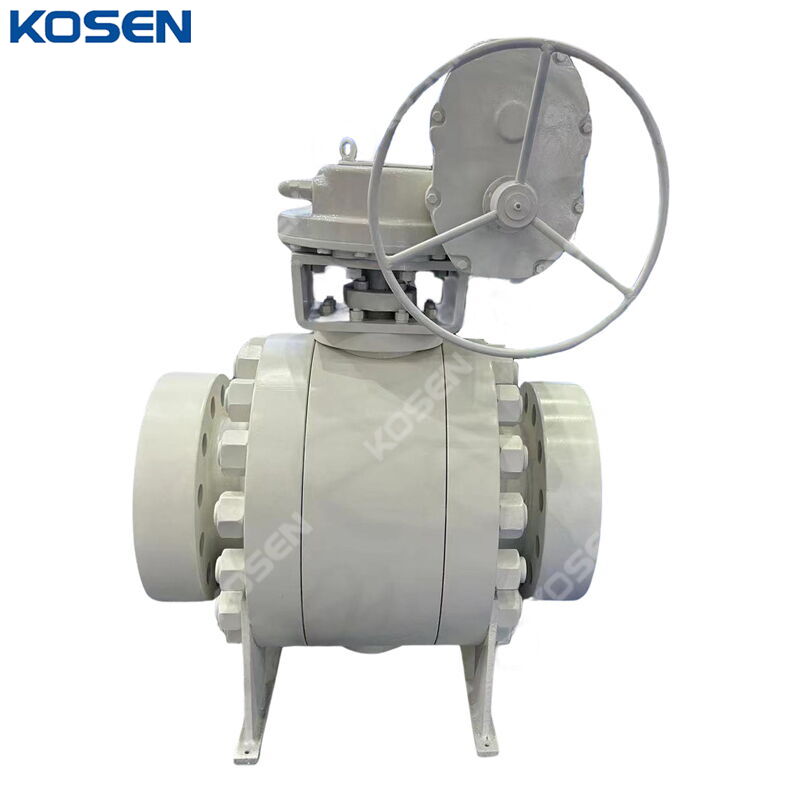

API 6D Metal Seated Ball Valves, ASTM A105N, 600 LB, RF Ends

Product Name: ASTM A105N Metal Seated Ball Valve
Design Standard: API 6D
Body Material: ASTM A105N
Size: Customized
Pressure: Class 600 LB, PN100
End Connection: RF
Operation: Gearbox

The Metal Seated Ball Valve utilizes a metal-to-metal sealing mode between the ball and seat. Depending on the service conditions and user requirements, various advanced hardening technologies are employed for the ball and seat, including HVOF coating, nickel-base alloy spray welding, high nickel alloy spray welding, nickel-base alloy tungsten carbide spray welding, and cobalt-base hard alloy spray welding. These materials offer excellent heat resistance, with sealing face temperatures reaching up to 540°C to 600°C, and can withstand a maximum temperature of up to 980°C. Additionally, they exhibit good wear and impact resistance.
The valve's seat is constructed from stainless steel with stellite alloy pile-up welding, while the ball is made from stainless steel, treated with surface techniques such as hard chrome plating, vacuum coating, tungsten-titanium alloy, and stellite alloy pile-up welding to meet heat and wear resistance requirements. The ball manufacturing process ensures high-accuracy and super-mirror surface finishes for the ball.
An integral feature of this valve is its spring-preloaded seat, which guarantees reliable sealing and stable operating torque. This design ensures absolute safety, sealing reliability, and operational flexibility, making the valve easy to maintain and operate.

Technical Specification

» Size Range: NPS 2-36 Inch (DN50–DN900)
» Design Pressure: Class 150–900 LB (PN10–PN160)
» Material: ASTM A105N, A350 LF2, A182 F304, F304L, F316, F316L, F51, etc.
» End Connections: RF, RTJ, BW
» Trim Materials: 13%Cr, SS 304, SS 304L, SS 316, SS 316L, and other Specials
» Operation: Handle, worm gear, electric, pneumatic
» Design and Manufacture: API 6D, BS 5351, ASME B16.34
» Face to Face (End to End): ASME B16.10
» Flanged Connection: ASME B16.5, ASME B16.47
» Test and Inspection: API 598, API 6D
» Butt Welded End: ASME B16.25
» Fire Safety: API 607, API 6A
» Temperature Range: -29°C to 300°C
» Medium: Water, gas, oil, etc.

Product Features

» Advanced Ball and Seat Hardening Technology for Enhanced Durability
» Flexible Valve Opening and Closing for Smooth Operation
» Fireproof Structure Design for Added Safety
» Double Block and Bleed (Metal Seated Trunnion Ball Valve) for Enhanced Isolation
» Reliable Sealing Performance for Leak-Free Operation
» Blow-out Proof Stem for Improved Safety and Durability
» Corrosion Resistance and Sulfide Stress Resistance for Long-Term Reliability
» Optional Locking Device or Stem Extension for Customization
» Optional Direct Mounting to ISO 5211 for Easy Integration
» Full Port or Reduced Bore Options for Versatile Flow Control
