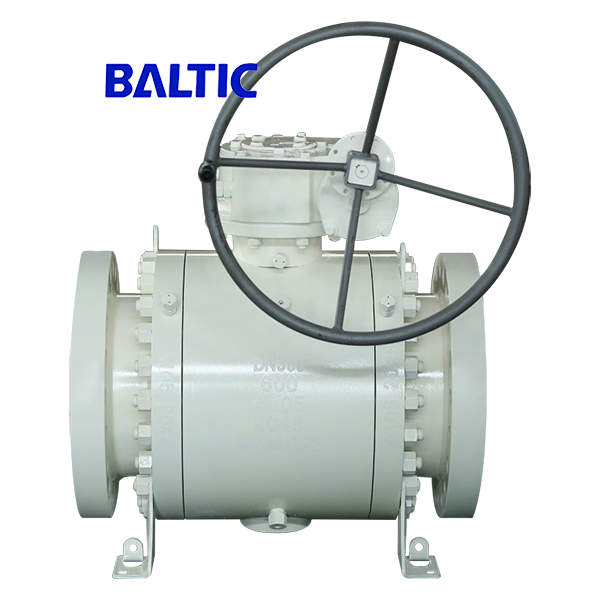

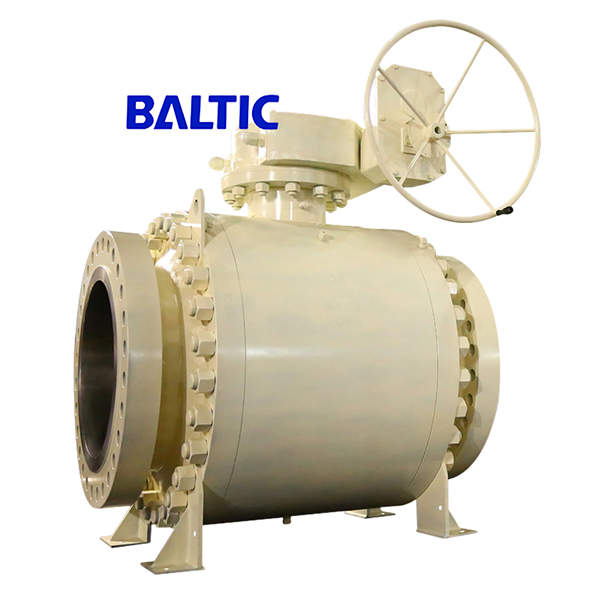

API 6D Ball Valve, ASTM A105N, CL600, Metal Seated, RF Ends

Product Name: API 6D Ball Valve, Metal Seated
Design Standard: API 6D
Body Material: ASTM A105N
Size: Customized
Pressure: Class 600 LB, PN100
End Connection: RF
Operation: Gear Box

The Metal Seated Ball Valve features a metal-to-metal sealing design for both the ball and seat, providing exceptional performance in demanding service conditions. The valve is designed to handle high temperatures and harsh operating environments, with advanced hardening technologies applied to the ball and seat, such as: HVOF coating, Nickel-base alloy spray welding, High nickel alloy spray welding, Nickel-base alloy tungsten carbide alloy spray welding, Cobalt-base hard alloy spray welding. These coatings provide excellent heat resistance, with sealing face materials capable of withstanding temperatures ranging from 540°C to 980°C. The seat is made of stainless steel and incorporates stellite alloy pile-up welding, offering superior wear and impact resistance.
For the ball, a combination of hard chrome plating, vacuum coating, and tungsten-titanium alloy or stellite alloy pile-up welding is used, ensuring the ball meets both heat resistance and wear resistance requirements. The manufacturing process for the ball is particularly advanced, achieving high accuracy and super mirror surface finishes.
A distinctive feature of this valve is the spring prepressing seat, which ensures reliable sealing, stable operating torque and enhanced safety and operating flexibility. This structural design makes the valve extremely reliable and durable, ensuring long-lasting performance even under the most challenging conditions.

Technical Specification

» Size Range: NPS 2-36 Inch (DN50–DN900)
» Design Pressure: Class 150–900 LB (PN10–PN160)
» Material: ASTM A105N, A350 LF2, A182 F304, F304L, F316, F316L, F51, etc.
» End Connections: RF, RTJ, BW
» Trim Materials: 13%Cr, SS 304, SS 304L, SS 316, SS 316L, and other Specials
» Operation: Handle, worm gear, electric, pneumatic
» Design and Manufacture: API 6D, BS 5351, ASME B16.34
» Face to Face (End to End): ASME B16.10
» Flanged Connection: ASME B16.5, ASME B16.47
» Test and Inspection: API 598, API 6D
» Butt Welded End: ASME B16.25
» Fire Safety: API 607, API 6A
» Temperature Range: -29°C to 300°C
» Medium: Water, gas, oil, etc.

Product Features

» Advanced Ball and Seat Hardening Technology
» Flexible Valve Opening and Closing
» Fireproof Structure Design
» Double Block and Bleed (DBB)
» Reliable Sealing Performance
» Blow-out Proof Stem
» Corrosion and Sulfide Stress Resistance
» Optional Locking Device or Stem Extension
» Optional Direct Mounting to ISO 5211
» Full Port or Reduced Bore
