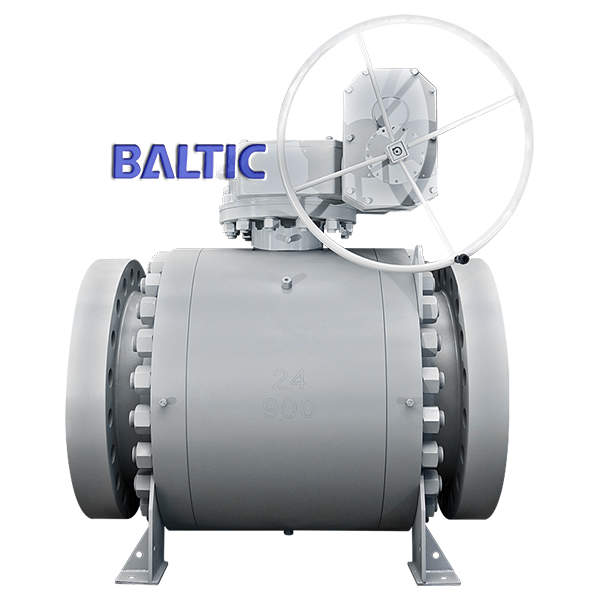

API 6D Metal Seated Ball Valve, ASTM A105N, 24 Inch, Class 300, RF
Model Number: A105N-24-300
Key Specifications / Features
API 6D Metal Seated Ball Valve Manufacturer in China: API 6D Metal Seated Ball Valve, ASTM A105N, 24 Inch, Class 300 LB, Big Size Ball Valve, RF Flanged.
Detail Information
Valve description：
Big size, metal seated ball valve.
Design: API 6D.
Body: ASTM A105N.
Nominal size: 24 Inch.
Nominal class: 300 LB.
End Connection: RF flange.
Face to face: as per ASME B16.10.
Test and inspection: API 598.
Product Range：
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2 - 60 Inch (DN15 - DN1500).
End connection: BW, Flanged.
Pressure range: 150 - 2500 LB (PN16 - PN420).
Working temperature: -46℃ - +540℃.
Big size, metal seated ball valve.
Design: API 6D.
Body: ASTM A105N.
Nominal size: 24 Inch.
Nominal class: 300 LB.
End Connection: RF flange.
Face to face: as per ASME B16.10.
Test and inspection: API 598.
Product Range：
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2 - 60 Inch (DN15 - DN1500).
End connection: BW, Flanged.
Pressure range: 150 - 2500 LB (PN16 - PN420).
Working temperature: -46℃ - +540℃.
