ASTM A216 WCB Floating Ball Valves, API 6D, 2 IN, CL150, 2PC

The China ASTM A216 WCB Ball Valves Plant offers a high-quality floating type ball valve designed for reliable flow control. This 2-piece valve features a carbon steel body (A216 WCB) and conforms to API 6D standards. It has a 2-inch (DN50) diameter, rated at Class 150 LB and PN20 pressure classes, with raised face (RF) flanged ends for secure connections. This valve is ideal for applications requiring durability and performance in various industrial settings.

Product Name: ASTM A216 WCB Floating Ball Valve, 2 Piece
Type: Floating Ball Valve
Design Standard: API 6D
Body Material: ASTM A216 WCB
Size: 2 Inch, DN50
Pressure: Class 150 LB, PN20
End Connection: RF Flanged
Operation: Lever
Temperature Range: -46°C to 120°C
Medium: Water, Gas, Oil, etc.

Cast Floating Ball Valves are engineered with a floating ball design supported by two PTFE seats, positioned on the upstream and downstream sides. Line pressure from the upstream side pushes the ball against the downstream seat, ensuring a secure and reliable shutoff. Manufactured using high-quality castings, these valves comply with international fire-safe standards such as BS 6755, API 607, and API 6FA, and meet all applicable ASME standards. Cast Floating Ball Valves are available in One-Piece Uni-body, Two-Piece Split Body, and Three-Piece Bolted Body configurations. They are designed and produced according to updated global standards including API 6D, ASME B16.34, and BS 5351. Standard features include fire-safe design, anti-static construction, and blow-out-proof stems, ensuring safe and dependable operation in a wide range of industrial applications.

Technical Specification

» Type: Cast Floating Ball Valve
» Size Range: NPS 1/2-10 Inch (DN15-DN250)
» Pressure Class: Class 150-600 LB (PN10-PN100)
» Body Materials: Cast Carbon Steel, Stainless Steel, Duplex, or Special Alloys
» Trim Materials: 13%Cr, SS 304, SS 304L, SS 316, SS 316L, and other alloys
» Seat Materials: NYLON, RPTFE, PEEK
» End Connections: Flat Face (FF), Raised Face (RF) Flanges, Butt Welded
» Operation Methods: Lever Handle, Worm Gear, Electric Actuator, Pneumatic Actuator
» Design & Manufacturing Standards: API 6D, BS 5351, ASME B16.34
» Face-to-Face Dimension: ASME B16.10
» Flange Standards: ASME B16.5
» Butt Weld End: ASME B16.25
» Testing & Inspection: API 598, API 6D
» Fire Safety Compliance: API 607, API 6FA

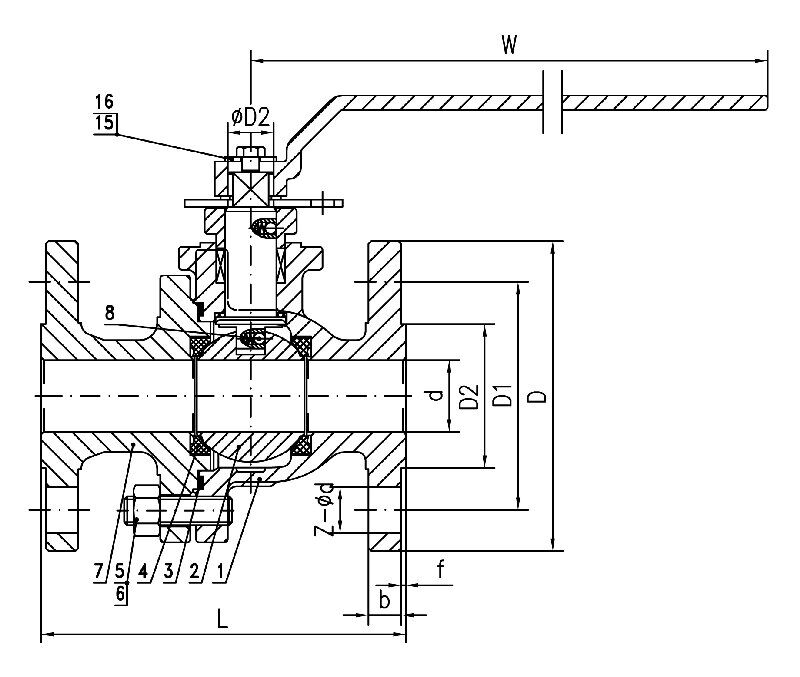

Structural Diagram

Product Features

» Low Operating Torque for Ease of Use
» Emergency Sealing Device for Safety-Critical Applications
» Fireproof Structure Design Compliant with International Standards
» Anti-Static Design for Electrical Safety
» High Integrity Seat Sealing Structure
» Upstream Pressure Relief via Specialized Automatic Relief Structure
» Blow-out Proof Stem with Flyout Prevention Mechanism
» Excellent Corrosion and Sulfide Stress Resistance
» Optional Locking Device or Stem Extension
» Optional ISO 5211 Direct Mounting Pad
» Available in Full Port or Reduced Bore Options
