Cast Steel Floating Ball Valve, WCB, 1-1/2 Inch, 150 LB, RF

Name: Cast Steel Floating Ball Valve, WCB, 1-1/2 Inch, 150 LB, RF
SKU: LD-20241227-FBV-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The Cast Steel Floating Ball Valve, manufactured in China, is designed according to API 6D and BS 5351 standards. It features a carbon steel ASTM A216 WCB body for strength and durability, with a 1-1/2 inch size and Class 150 LB pressure rating. The valve is equipped with RF flanged ends for secure, leak-free connections.

Request a quote

Detail Information

Product Name: Cast Floating Ball Valve
Design Standard: API 6D, BS 5351
Body Material: ASTM A216 WCB
Size: 1-1/2 Inch, DN40
Pressure: Class 150 LB, PN20
End Connection: RF Flanged
Operation: Lever

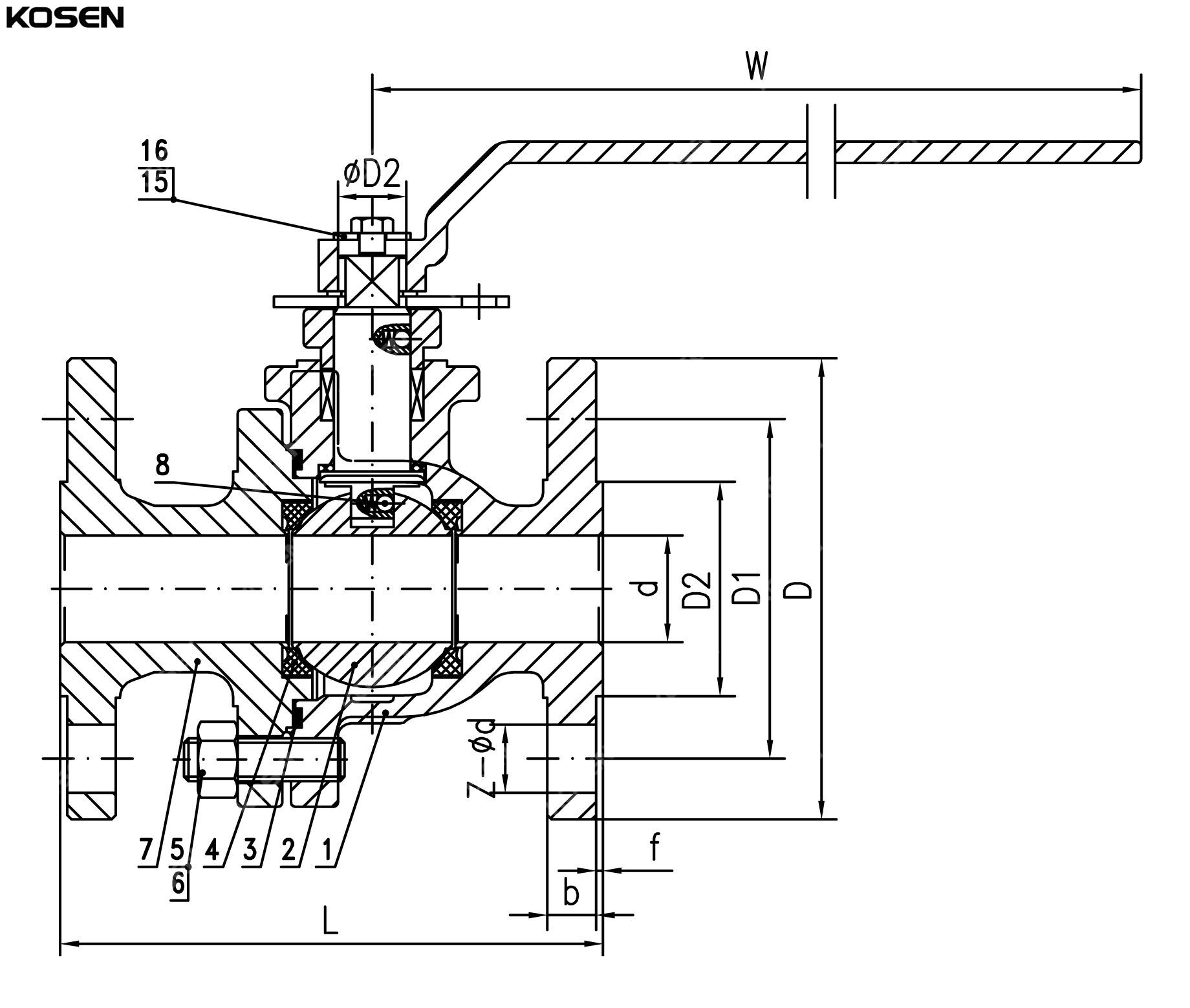

Cast Floating Ball Valve design supports the ball with two PTFE seats: one on the upstream side and the other on the downstream side of the ball. The upstream pressure pushes the ball, compressing the downstream seat to completely shut off fluid flow. All Cast Floating Ball Valves manufactured by KOSEN are built with reliable, high-quality castings and a fire-safe design certified according to BS 6755, API 607, and API 6FA. They meet all applicable ASME standards. KOSEN Floating Ball Valves are available in One-Piece Uni-body, Two-Piece Split Body, and Three-Piece Bolted Body types. They are designed and manufactured to the latest international standards, including API 6D, ASME B16.34, BS 5351, or equivalent. Standard features include fire safety, anti-static design, and blow-out protection.

Technical Specifications

» Size Range: NPS 1/2-10 Inch (DN15-DN250)
» Design Pressure: Class 150-600 LB (PN10-PN100)
» Materials: Cast Carbon Steel, Stainless Steel, Duplex Steel, or Other Specials, ASTM A216 WCB, WCC, A352 LCB, LCC, A351 CF8, CF8M, CF3 ,CF3M
» Trim Materials: 13%Cr, SS 304, SS 304L, SS 316, SS 316L, and other specials
» Seat Materials: Nylon, RPTFE, PEEK
» End Connections: FF and RF flange, Welded
» Operation: Handle, Worm Gear, Electric, Pneumatic
» Temperature Range: -46°C~120°C
» Medium: Water, Gas, Oil, etc
» Design and Manufacture: API 6D, BS 5351, ASME B16.34
» Face to Face (End to End): ASME B16.10
» Flanged Connection: ASME B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded End: ASME B16.25
» Fire Safety: API 607, API 6A

Product Features

» Low Operating Torque
» Emergency Sealing Device
» Fireproof Structure Design
» Anti-static Structure
» Reliable Seat Sealing Structure
» Special Structure for Automatic Pressure Relief Towards Upstream
» Blow-out Proof Stem with Stem Flyout Prevention Design
» Corrosion Resistance and Sulfide Stress Resistance
» Optional Locking Device or Stem Extension
» Optional Direct Mounting to ISO 5211
» Full Port or Reduced Bore
