Twin Sphere Rubber Flexible Joint, EPDM Bellows, DN32-DN350

Product Item: Twin Sphere Rubber Flexible Joint
Flange Material: Electroplated Carbon Steel
Bellows Material: EPDM Rubber
Size Range: 1-1/4 Inch - 14 Inch, DN32-DN350
Working Pressure: 300 PSI (200 PSI and 250 PSI available upon request)
Connection Ends: Flange Drilling to ASME B16.5 Class 150 LB
Temperature Range: 0°C to 80°C
Vacuum Capacity: 650 MM/HG

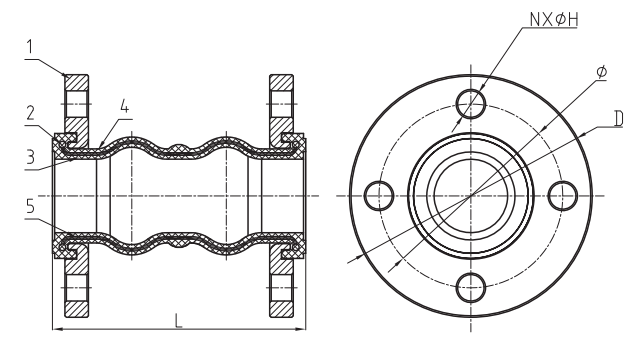

Twin Sphere Rubber Flexible Joint Design Drawing

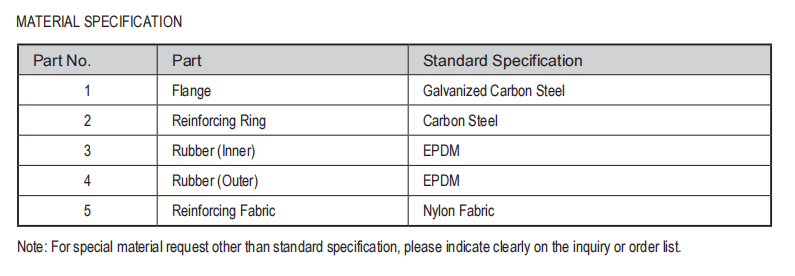

Twin Sphere Rubber Flexible Joint Material Specification

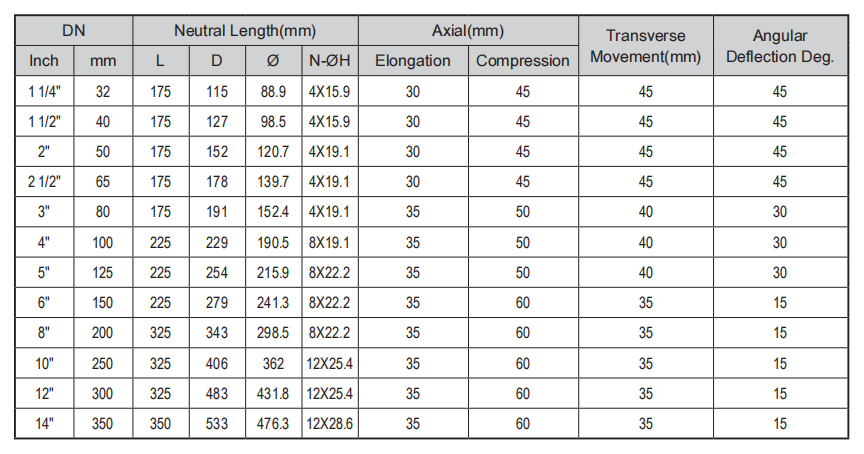

Twin Sphere Rubber Flexible Joint Dimensions
