Twin Seal Orbit General Valve, API 599, WCB, 3 Inch, 150 LB

Name: Twin Seal Orbit General Valve, API 599, WCB, 3 Inch, 150 LB
SKU: KV-20241231-OPV-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

This Twin Seal Orbit General Valve is designed to API 599 standards and constructed from ASTM A216 WCB material for durability and reliability. With a 3-inch (DN80) size, Class 150 LB (PN20) pressure rating, RF flanged ends, and handwheel operation, it ensures efficient and secure flow control in various industrial applications.

Request a quote

Detail Information

Product Name: Twin Seal Orbit General Valve, Plug Valve
Design Standard: API 599
Body Material: ASTM A216 WCB
Size: 3 Inch, DN80
Pressure: Class 150 LB, PN20
End Connection: RF Flange
Operation: Handwheel

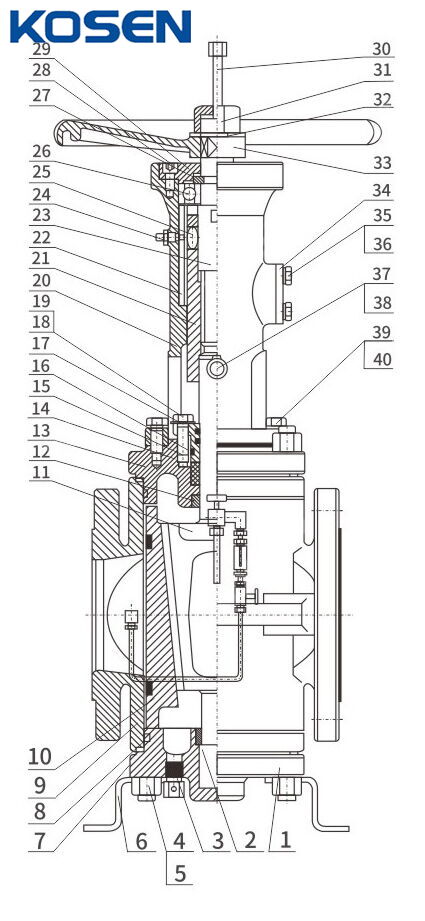

When the twin seal orbit valve is fully open, the plug channel aligns perfectly with the valve body channel, ensuring minimal pressure drop. Turning the handwheel in the valve’s direction rotates the plug, which in turn drives the valve disc to rotate 90 degrees. As the handwheel is further rotated, the plug moves downward, causing the valve to open on both sides. The valve disc is then tightly pressed against the valve seat, effectively closing the valve.
When rotating the handwheel in the opposite direction, the plug first moves upwards, releasing the valve disc from the seat. Continuing to rotate the handwheel, the plug then drives the valve disc to rotate 90 degrees. Finally, the plug channel aligns with the valve body channel once more, leaving the valve fully open.

Technical Specifications

Structure: Twin Seal Orbit Plug Valve
Nominal Diameter: NPS 2-36 Inch (DN50-DN900)
Design Pressure: Class 150-900 LB, PN20-PN150
Materials: ASTM A216 WCB, WCC, A217 WC6, WC9, C5, A352 LCB, LCC, A351 CF8, CF8M, CF3M, CF8C
Design Standard: API 6D, API 599
Face to Face: ASME B16.10
Connection Ends: RF, RTJ
Test Standard: API 598, ISO 5208
Design Temperature: -46°C to +300°C
Applicable Mediums: Water, Steam, Oil, Gas, etc.
Operation Types: Lever, Gear Box, Electric, Pneumatic, Hydraulic

Product Features

» Reliable Sealing: The valve provides effective sealing through sealing rings around the valve disc, ensuring a leak-tight closure.
» Enhanced Protection: It features unique protection with wallow-tailed sink and fixed sealing rings for improved durability and performance.
» Double-Direction Flow: The valve’s double-direction flow design makes installation and operation more flexible and convenient.
» Customizable Configuration: Parts materials and flange sizes can be tailored to meet specific operational conditions or customer requirements, offering versatility for diverse engineering needs.
» Excellent Performance & Appearance: The valve combines high performance with a sleek, aesthetically pleasing design.
