Rubber Expansion Joint, 1-1/4 - 14 IN, 300 PSI, Twin Sphere

Name: Rubber Expansion Joint, 1-1/4 - 14 IN, 300 PSI, Twin Sphere
SKU: LPF-20250208-PJ-02
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The Twin Sphere Rubber Expansion Joint features EPDM bellows for superior flexibility and durability. It is equipped with electroplated carbon steel flanges to resist corrosion and ensure secure installation. Available in sizes from 1-1/4 to 14 inches (DN32-DN350) and a 300 PSI pressure rating, with 200/250 PSI options also available, this expansion joint effectively accommodates thermal expansion, vibrations, and misalignment in pipelines

Request a quote

Detail Information

Product Name: Twin Sphere Rubber Expansion Joint

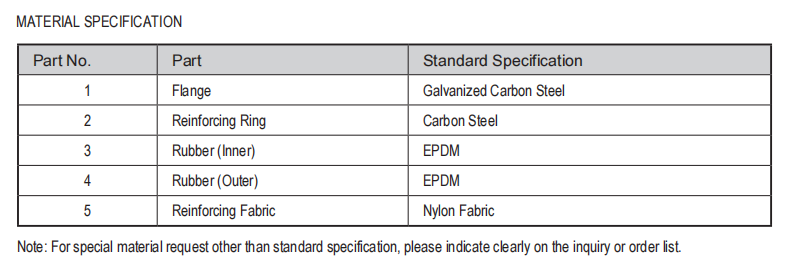

Bellows Material: EPDM Rubber
Flange Material: Electroplated Carbon Steel

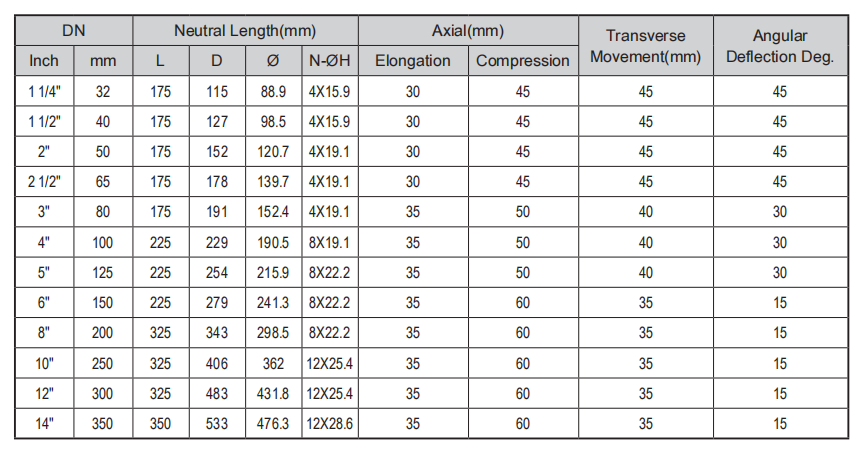

Size Range: 1-1/4 - 14 Inch, DN32-DN350
Working Pressure: 300 PSI (200/250 PSI available upon request)
Connection Ends: Flange Drilling to ASME B16.5 Class 150 LB
Temperature Range: 0°C to 80°C
Vacuum Capacity: 650 MM/HG
