EPDM Rubber Expansion Joint, 1/2-3 IN, 300 PSI, Twin Sphere

Name: EPDM Rubber Expansion Joint, 1/2-3 IN, 300 PSI, Twin Sphere
Brand: www.landee.cn
SKU: LD-20250210-PJ-01
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Model Number: LD-20250210-PJ-01

Key Specifications / Features

The EPDM Rubber Expansion Joint features a twin sphere body design for flexibility and durability. It is equipped with malleable iron unions for secure connections and is available in sizes ranging from 1/2 to 3 inches (DN15-DN80). With a pressure rating of 300 PSI, this expansion joint ensures reliable performance in various piping systems. The union-screw ends provide easy installation and maintenance.

Expansion Joint EPDM Pipe Joint Rubber Pipe Joint 300 PSI Pipe Joint Twin Sphere Pipe Joint

Detail Information

Product Item: EPDM Rubber Expansion Joint, Flexible Rubber Joint, Twin Sphere

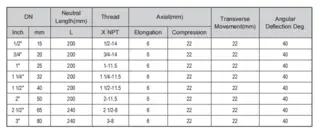

Size Range: 1/2-3 Inch, DN15-DN80

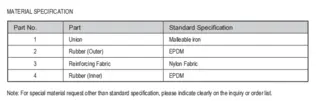

Rubber Material: EPDM
Uinion Material: Malleable Iron
Working Pressure: 300 PSI (Standard), 200 PSI and 250 PSI available upon request
Thread Standard: ASME B1.20.1

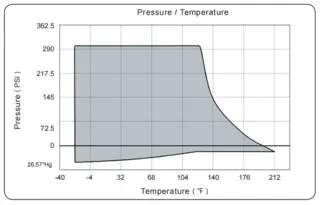

Temperature Range: 0°C to 80°C
Vacuum Capacity: 500 mm/Hg
End Connection: Union-Screw End

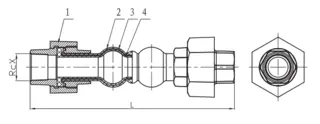

Twin Sphere Rubber Expansion Joint Structural Diagram
