ASTM A351 CF8 Cryogenic Globe Valve, BS 1873, DN65, PN20, BW

Product Name: ASTM A351 CF8 Cryogenic Globe Valve
Design Standard: BS 1873
Body Material: ASTM A351 CF8
Size: DN65, 2-1/2 Inch
Pressure: PN20, Class 150 LB
End Connection: Butt Weld
Operation: Manual
Medium: LNG, LO2, LN2, LAr, CO2
Temperature Range: -196°C to 80°C

The cryogenic globe valve is specifically designed to perform reliably under low-temperature and cryogenic conditions. Constructed from durable materials such as stainless steel, carbon steel, and cast steel, it features an extended bonnet that protects the stem packing by distancing it from the cryogenic medium. The length of the bonnet varies depending on the application and user requirements. These valves are commonly used in LNG facilities, ethylene plants, and gas production terminals, and are capable of throttling fluids at temperatures as low as -196°C. We offer a wide range of high-performance cryogenic globe valves tailored to meet diverse industrial needs.

Technical Specification

» Nominal Diameter: DN65–DN100, 2-1/2 Inch – 4 Inch
» Design Pressure: PN20, Class 150 LB
» Material Options: ASTM A351 CF8, CF8M, CF3, CF3M, etc.
» Operating Temperature Range: -196°C to +80°C
» Design & Manufacturing Standard: BS 1873
» Face-to-Face Dimensions: ASME B16.10
» Flange Dimensions: ASME B16.5
» Pressure Testing Standard: API 598
» NACE Compliance: NACE MR0103 / NACE MR0175
» Operator Options: Handwheel
» Connection Type: Butt Weld

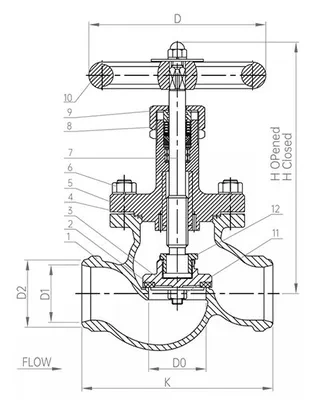

Structural Diagram
