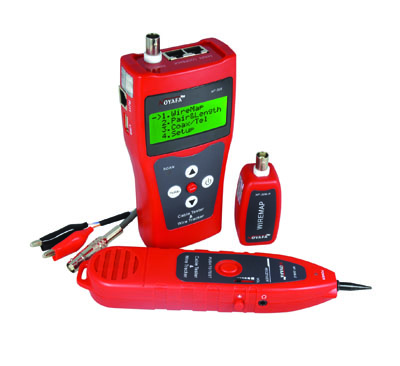

Wire Circuit Analyzer NF-8208R

Name: Wire Circuit Analyzer NF-8208R
SKU: NF-8208R
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

NF-8208R multipurpose network cable test & inspection instrument is provided with fluent appearance,excellent hand feel and considerate human-centered design.It owns three great functions of hunting,wire sorting and circuit status testing and the features of quickness and accuracy,thus,it becomes available tool for technicians in installation and maintenance of weak current system,such as, communication line, comprehensive wiring circuit, etc. It is widely applicable to telephone system, computer network, other metal wire circuit and other fields.

Request a quote

Detail Information

Main Functions :
♦One person enough to complete cable continuity check.
♦The function of probing the audio and tracing the cable.
♦Check wire fault in 5E, 6E, coaxial and telephone line such asopen , short , jumper wire, reverse connection or cross-talkinterference.
♦Locate the range of wire or connection error .
♦Measure cable length and determine the distance of open andshort circuit.
♦Dynamically calibrate cable length and make length measurement asaccurate as 95%.
♦Far-end recognizer with prompting voice.
♦Self-checking function and automatically compensate any change inbattery capacity or ambient temperature.
♦Single board computer software watchdog design and reliable operation.
Technical indexes:

Overall dimension	Main tester: 180×80×40mm; receiver: 218×46×29mm; Remote identifier: 77×31×21mm.
Power	Main tester: 6V DC battery. Receiver: 9V DC battery.
Display	4 x 16 character big screen LCD lattice (valid visual field 61.6 x 25.2 mm).
tested cables	STP/UTP twin twisted cable, coaxial cable, telephone line.
detected lines	5E, 6E, telephone wire, coaxial cable and other metal wires.
Ambient temperature of work	-10℃~+60℃
Tester Port	Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), hunting RJ45 port(SCAN); Remote identifier RJ45 port (R); The extra BNC and RJ11 converters (to measure and check the continuity of coaxial cable and telephone line).
Length Measurement of Twin Twisted Cable	Scope: 1~350 M (3 ~200 ft) Calibration accuracy: 3% (+/- 0.5M or +/- 1.5 ft) (calibrating cable > 5 M) Shipment accuracy: 5% (+/- 0.5 M or +/- 1.5 ft). (AMP, AT&T Class 5 cable)
Length Calibration	User can set calibration factor by himself with a given length cable. The length of cable is more than 5M.
