Metal Seated Lift Plug Valve, API 6D, A217 C5, 2 Inch, CL300

The Metal Seated Lift Plug Valve Plant produces high-quality valves that adhere to both API 6D and API 599 standards. These valves feature an alloy steel body made from ASTM A217 C5, ensuring durability and strength. The 2-inch (DN50) valves are rated for Class 300 LB (PN50) and are handwheel operated for precise control. They are equipped with RF flanged ends for secure and reliable connections. The metal-seated design provides excellent sealing performance.

Product Name: Metal Seated Lift Plug Valve
Design Standard: API 6D, API 599
Body Material: ASTM A217 C5
Size: 2 Inch, DN50
Pressure: Class 300 LB, PN50
End Connection: RF Flanged
Operation: Handwheel

The Lifting Plug Valve operates by a two-step action for both opening and closing. When opening the valve, the handwheel is first turned to lift the plug, separating it from the sealing surface. Then, the handle is turned 90 degrees to align the plug channel with the valve body channel, allowing the valve to open. To close the valve, the handle is turned 90 degrees, making the plug channel perpendicular to the valve body channel, and the handwheel is turned to lower the plug, sealing the valve.
This design ensures a reliable and smooth operation, making the lifting plug valve an ideal choice for industries such as petroleum, chemical, pharmaceutical, fertilizer, and power. With KOSEN's dedicated workshops and advanced mold casting capabilities, you can be assured of high-quality performance for all your plug valve needs.

Technical Specification

» Structure: Lifting Plug Valve
» Nominal Diameter: NPS 2-24 Inch (DN50-DN600)
» Design Pressure: Class 150-1500 LB, PN20-PN250
» Material: Carbon Steel, Stainless Steel, Aluminum Bronze, Duplex Steel, etc.
» Design Standard: API 6D, API 599
» Face to Face: ASME B16.10
» Connection End: RF, RTJ, Butt Welding
» Test Standard: API 598, ISO 5208
» Design Temperature: -29°C to +425°C
» Applicable Medium: Water, Steam, Oil, Gas, etc.
» Operation: Lever, Gearbox, Electric, Pneumatic, Hydraulic

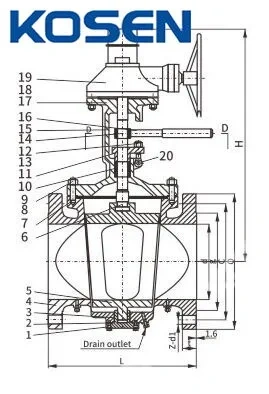

Working Principle of Lifting Plug Valve

The lifting plug valve consists of several key components: valve body, valve stem, valve cover, fixing device, positioning device, sealing device, blowing pipe, lifting screw sleeve, rotating handle, and others.
To operate, rotate the lifting screw sleeve clockwise to release the valve stem.
Next, rotate the upper rotating handle to move the valve stem, positioning it in the desired place.
Once in position, rotate the lifting screw sleeve counterclockwise to lock the valve stem, completing the valve's switch between open and closed states.
