Bladder Surge Vessel, ASME VIII-1, ASME SA516M 485, ASTM A36

Name: Bladder Surge Vessel, ASME VIII-1, ASME SA516M 485, ASTM A36
SKU: FAB-240131-ST-02
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

As a premier bladder surge vessel factory based in China, we specialize in manufacturing high-quality vessels tailored to meet diverse industrial needs. Our surge vessels are constructed from top-grade materials, including ASME SA516M 485 and ASTM A36, ensuring durability and reliability. With a design pressure of 5.0 MPa and compliance with ASME VIII Division 1, Ed.2017 standards, our φ1500 x 2350 x 32 MM vessels offer a maximum volume of 300 m³, providing efficient storage and surge capacity for various applications.

Request a quote

Detail Information

Product Details

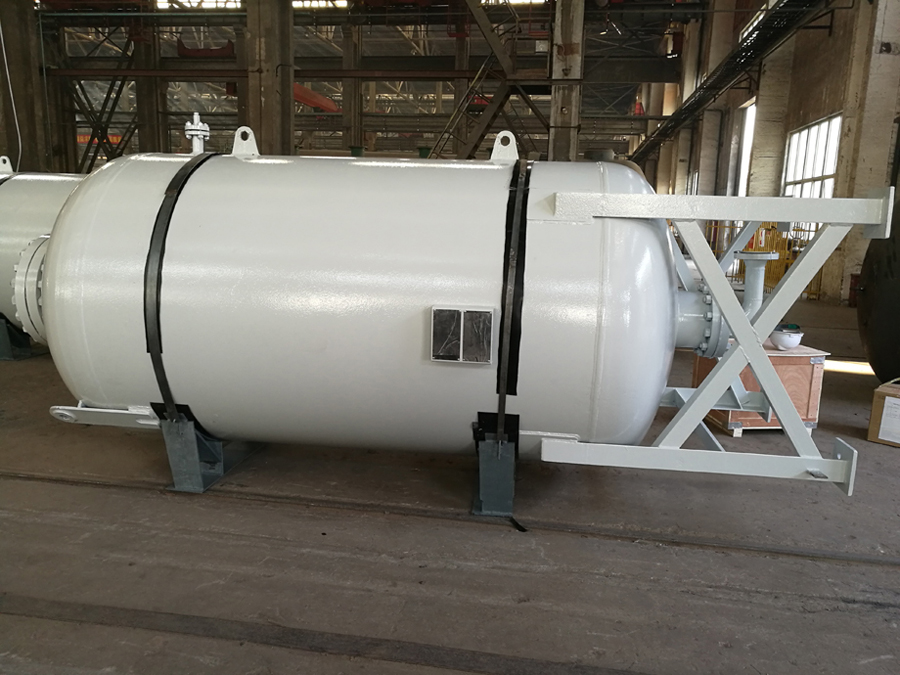

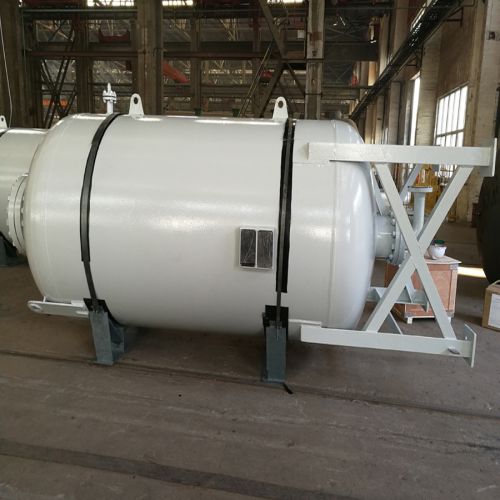

Product Name: Bladder Surge Vessel
Material: ASME SA516M Grade 485, ASTM A516M Grade 485, ASTM A36
Design & Fabrication Code: ASME Section VIII Division 1, Ed.2017
Design Pressure: 5.0 MPa (0.1-100 MPa)
Specification: φ1500 x 2350 x 32 MM (Volume up to 300 m³)

Project Description

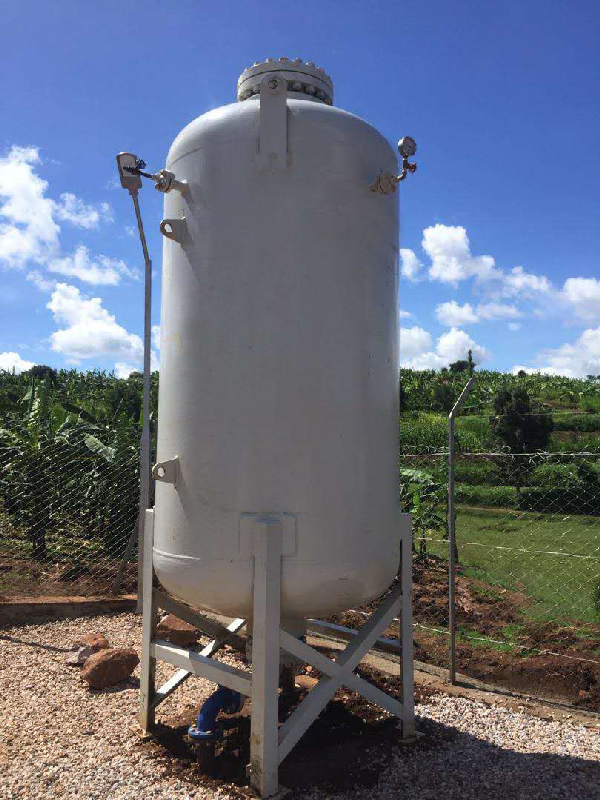

Project Name：Gihengeri-Ngarama-Gatsibo Water Supply Project
Project Location: Rwanda
Delivery Time: 10 Weeks

Working Principle: Bladder surge vessel is a new type equipment which serve the water for high rise buildings. Bladder is an important part of it, which works match with vessel. The shape of vessel is like a pocket. There are holes and flanges both on top and bottom.

The bladder are equipped with the vessel with a certain gap between each other. The capacity of bladder is filled with water, and chlorine gas filled into the gap between the bladder and the vessel. When the water pump supplies water to the user, the volume of the water chamber in the bladder gradually expands, and the volume of the air chamber gradually shrinks. When the pressure increases to a certain value, the water pump automatically stops running. At this time, the bladder starts to move toward the center under the action of external chlorine. Shrinkage deformation, slowly squeeze the water in the inner cavity into the pipeline. When the pressure drops to a certain value, the water pump starts, and continues to fill the bladder with water. This operation is repeated, so that the pipeline is always filled with water, and the water supply automation is achieved.

Features of the equipment: The internal structure of the tank ensures that the water does not come into contact with the wall, so there is no rust inside, no condensation on the outside, and the service life is greatly extended.
The bladder can relax more than 200,000 times and can be used for a long time after inflation.
It can effectively smooth the pressure fluctuations in the water system and reduce the start and stop frequency of the pump.
