Single Sphere Rubber Flexible Joint, 1-1/4-24 Inch, 300 PSI

Product Item: Single Sphere Rubber Flexible Joint
Flange Material: Electroplated Carbon Steel
Bellows Material: EPDM Rubber
Size Range: 1-1/4 Inch - 24 Inch, DN32-DN600
Working Pressure: 300 PSI (175 PSI, 200 PSI, and 250 PSI available upon request)
Connection Ends: Flange Drilling to ASME B16.5 Class 150 LB
Temperature Range: 0°C to 80°C
Vacuum Capacity: 700 mm/Hg

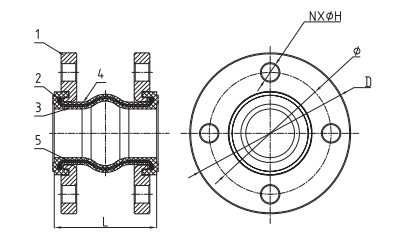

Single Sphere Rubber Flexible Joint Design Drawing

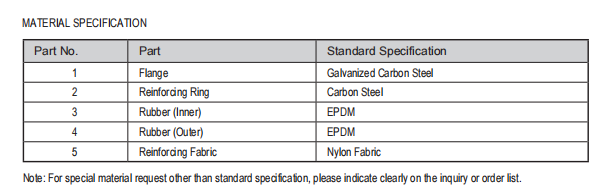

Single Sphere Rubber Flexible Joint Material Specifications

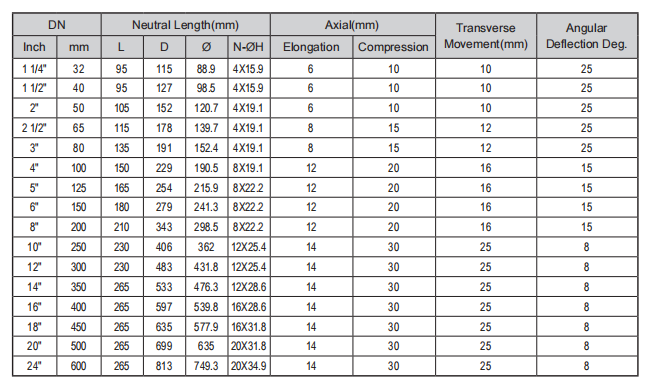

Single Sphere Rubber Flexible Joint Dimensions

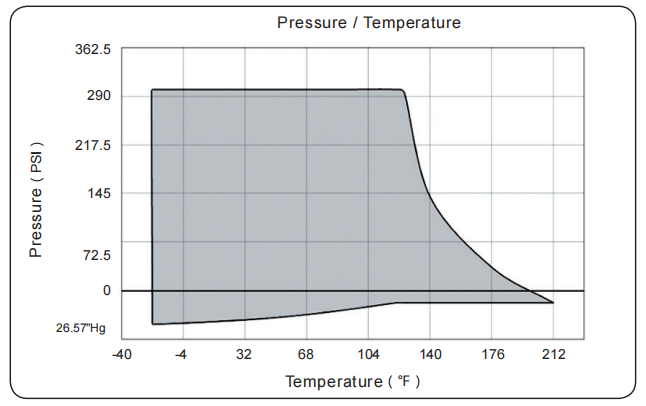

Rubber Flexible Joint Pressur-to-Temperature Table
