EPDM Rubber Flexible Joint, 1-1/4 - 24 Inch, Single Sphere
Key Specifications / Features
The EPDM Rubber Flexible Joint features a single sphere design with electroplated carbon steel flanges for enhanced durability and corrosion resistance. Available in sizes from 1-1/4 to 24 inches (DN32-DN600) and pressure ratings of 175 PSI, 200 PSI, and 250 PSI, this joint provides excellent flexibility and vibration isolation. It is ideal for use in pipelines handling water, chemicals, and other fluids, offering reliable performance in various industrial applications.
Request a quote
Detail Information
Product Name: Single Sphere Rubber Flexible Joint

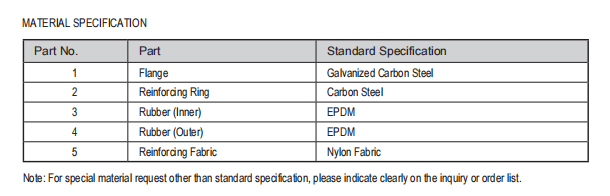

Bellows Material: EPDM Rubber
Flange Material: Electroplated Carbon Steel

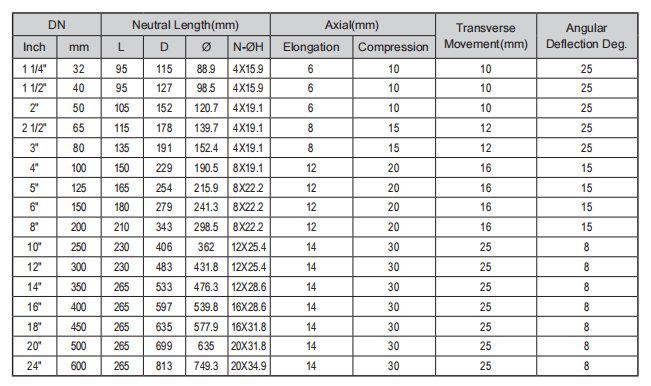

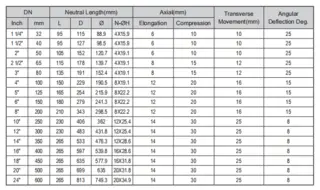

Size Range: 1-1/4 - 24 Inch, DN32-DN600
Working Pressure: 300 PSI (175 PSI/200 PSI/250 PSI available upon request)
Connection Ends: Flange Drilling to ASME B16.5 Class 150 LB
Temperature Range: 0°C to 80°C
Vacuum Capacity: 700 mm/Hg
