EPDM Rubber Expansion Joint, 1/2-3 IN, 300 PSI, Twin Sphere

Product Item: EPDM Rubber Expansion Joint, Flexible Rubber Joint, Twin Sphere
Size Range: 1/2-3 Inch, DN15-DN80
Rubber Material: EPDM
Uinion Material: Malleable Iron
Working Pressure: 300 PSI (Standard), 200 PSI and 250 PSI available upon request
Thread Standard: ASME B1.20.1
Temperature Range: 0°C to 80°C
Vacuum Capacity: 500 mm/Hg
End Connection: Union-Screw End

Twin Sphere Rubber Expansion Joint Structural Diagram

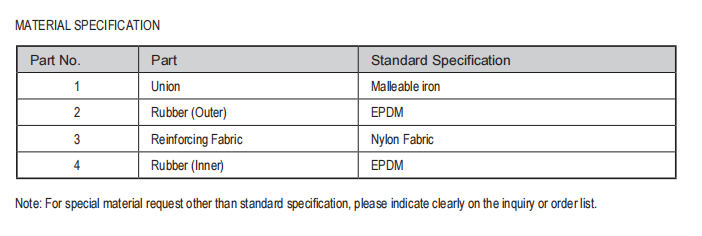

Twin Sphere Rubber Expansion Joint Material Specification

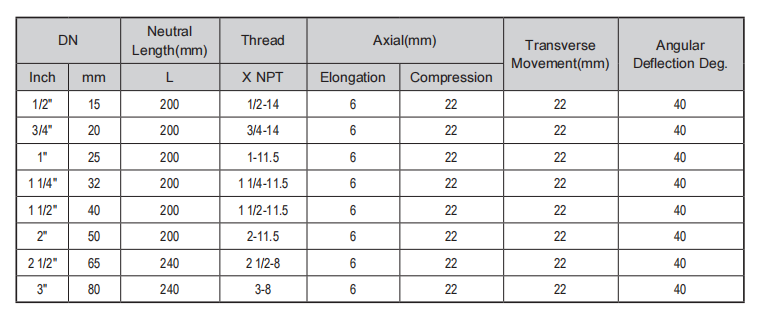

Twin Sphere Rubber Expansion Joint  Dimensions

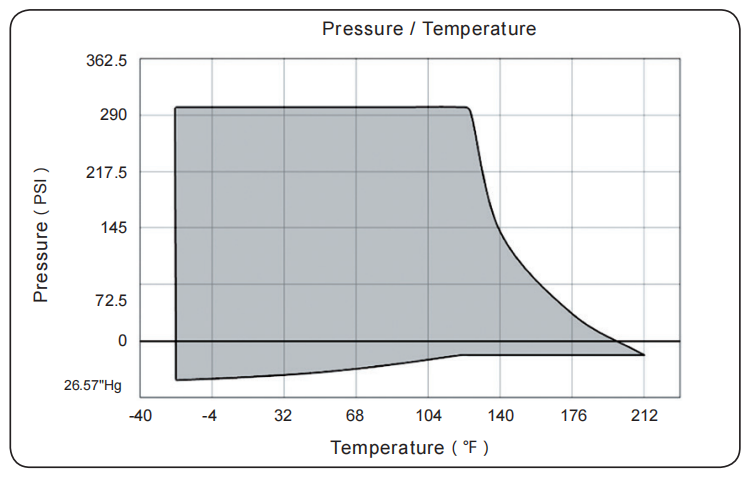

Rubber Expansion Joint Joint Pressure-Temperature Table
