ASTM A351 CF8M Basket Strainer, ANSI B16.34, 2 Inch, 150 LB

Product Name: ASTM A351 CF8M Basket Strainer
Type: Basket Strainer
Design Standard: ANSI B16.34
Body Material: ASTM A351 CF8M
Size: 2 Inch, DN50
Pressure: Class 150 LB, PN20
End Connection: RF Flanged
Medium: Water, Ammonia, Oil, Hydrocarbons, etc.
Temperature Range: -29°C to 425°C

The Basket Type Strainer is a pipeline filtration device designed for the efficient removal of solid impurities from process fluids. It features a robust structure comprising a main pipe, connecting pipe, filter basket, flanges, flange cover, and fasteners. As fluid flows into the strainer through the main pipe, solid particles are captured in the filter basket, while the cleaned fluid exits through the outlet.
Maintenance is simple and user-friendly—by unscrewing the drain plug at the bottom, draining the fluid, and removing the flange cover, the filter basket can be taken out for cleaning. After reassembly, the strainer is ready for continued service, ensuring minimal system downtime and operational efficiency.

Technical Specifications

» Size Range: 1-1/2 – 48 Inch (DN40-DN600)
» Pressure Rating: PN16-PN420, Class 150 to 2500 LB
» Material Options: 20# Carbon Steel, ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M
» Temperature Range: -29°C to +425°C
» End Connections: RF (Raised Face), BW (Butt Weld)

Standards Compliance

» Design & Manufacture: ANSI B16.34, API 600, API 6D
» Face-to-Face Dimensions: ANSI B16.10, API 6D
» Flanged Ends: ANSI B16.5 (2-24 Inch)
» Testing & Inspection: API 598, API 6D
» Butt Weld Ends: ANSI B16.25

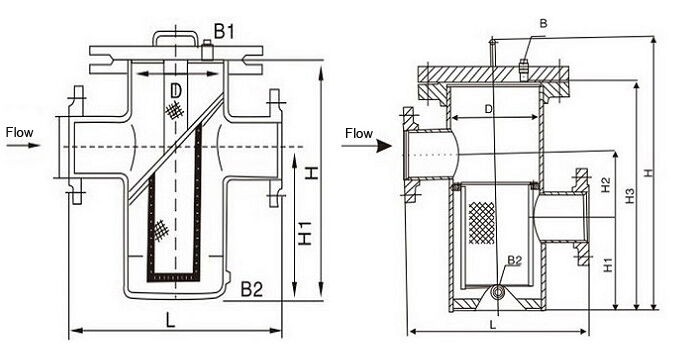

Structural Diagram
