Carbon Steel Pipe, Types and Technical Parameters

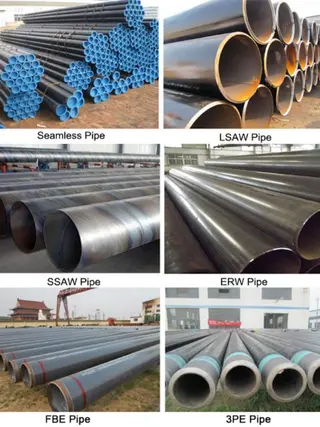

1. Carbon Steel Seamless Pipe
Standard: API 5L, A106, A53, A333, EN10210, EN10216, DN1626.
Material: Gr. B X42-X70, Gr.6, S235, S355, P235, P265...
OD: 1/2Inch-28 Inch.
Thickness: SCH 30 STD 40 80 160 XXS.
Length: SRL DRL 5.8 11.8.
End Treatment: BE, PE, TH.
Surface Finished: Black paint, galvanized, anti-corrosive coating.

2. A333 Gr.6 Low Temperature Seamless Steel Pipe
Standard: A333.
Material and Grade: Gr.1 3 4 6 7 8 9 10 11.
OD: 1/2 - 28 Inch.
Thickness: SCH 30, STD 40, 80, 160, XXS.
Length: SRL, DRL, 5.8m, 11.8m.
End Treatment: BE, PE, TH.
Surface Finished: Black paint, galvanized, coating.

3. ERW Welded Carbon Steel Pipe
Standard: API 5L, A53, EN10217, EN10219…
Material: Gr.B X42-X70, P235S, 235JRH, S355…
OD: 1/2 Inch-26 Inch.
Thickness: 1-18mm.
Length: 5.8m, 11.8m.
End Treatment: BE, PE, TH.
Surface Finished: Black paint, galvanized, anti-corrosive coating.

4. SSAW Carbon Steel Pipe
Standard: API 5L, A53, A333, A671, A672, EN10219…
Material and Grade:B, X42-X70, Gr.6, CC65, S235JRH, S355J0H…
OD: 4219.1-3500mm.
Thickness: 4-20mm.
Length: 5.8 m, 11.8m.
End Treatment: BE, PE, TH.
Surface Finished: Black paint, galvanized, anti-corrosive coating.

5. LSAW Carbon Steel Pipe
Standard: API 5L, A53, A333, A671, A672, EN10219…
Material and Grade: B, X42-X70, Gr.6, CC65, S235JRH, S355J0H…
OD: 406.4-1420.
Thickness: 7-35mm.
Length: 5.8 m, 11.8m.
End Treatment: BE, PE, TH.
Surface Finished: Black paint, galvanized, anti-corrosive coating.

6. FBE Coated Pipe
Standard: AWWA C213.
OD: 4 - 48 Inch.
Thickness: SCH 30, STD 40, 80, 160, XXS.
Length: DRL 11.8m.
End Treatment: BE, PE.
Cut Back Length: 150mm.
Surface Finished: FBE coating.

7. Cold Drawn/Rolled Seamless Tube
Standard：A179, A192, A210, A519, DIN2391, DIN17175, DIN, 10305…
Material and Grade: A1, C, 1010, 1020, 1025, ST35, ST35.8.
OD: 6-89mm.
Thickness: 1-15mm.
Length: SRL, DRL, 5.8m, 11.8m.
End Treatment: BE, PE, TH.
Surface Finished: Black paint, galvanized, coating.

8. 3LPE/3LPP Coated Pipe
Standard: DIN30670, DIN30678…
OD: 4 - 48 Inch.
Thickness: SCH 30, STD 40, 80, 160, XXS.
Length: DRL 11.8m.
End Treatment: BE, PE.
Cut Back Length: 150mm.
Surface Finished: 3LPE/3LPP.
