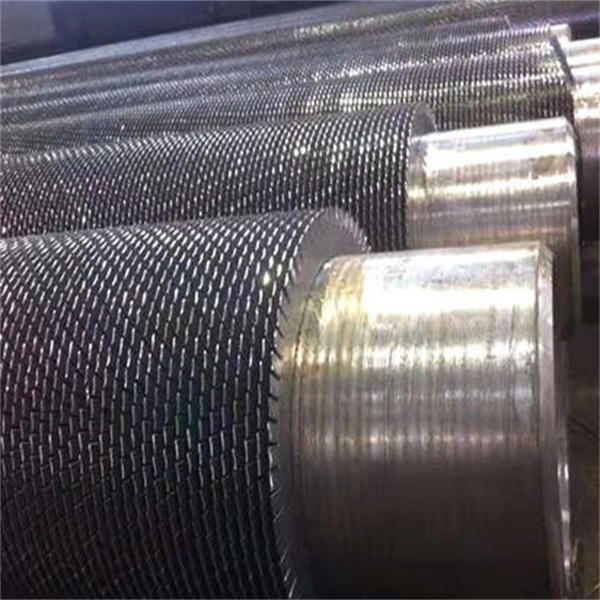

HF Helical Serrated Finned Tube, OD 0.75-8 Inch
Key Specifications / Features
HF Finned Tube Supplier: Helical Serrated Fin Tubes, OD 0.75-8 Inch (19.05–219.1 MM), Height 0.5–1.5 Inch, T 0.036–0.05 Inch, Spacing 1–7 Per Inch.
Request a quote
Detail Information

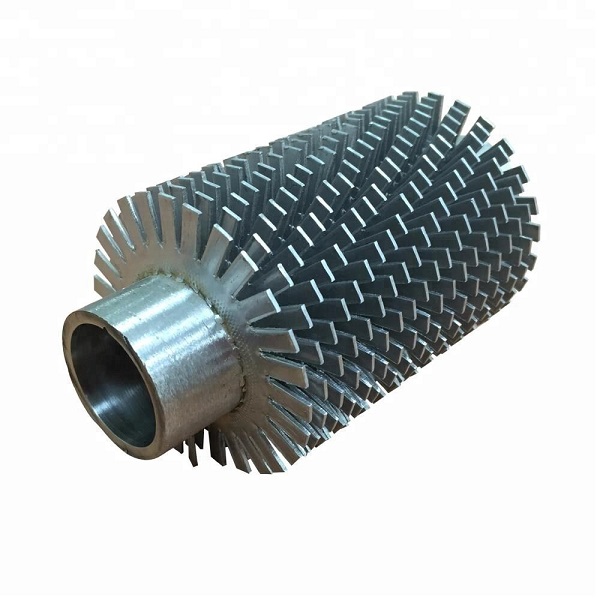

HIGH FREQUENCY HELICAL SERRATED FINNED TUBES
Fin Height: 0.5–1.5 Inch (12.7–38.1mm).
(higher on application).
Fin Height: 0.5–1.5 Inch (12.7–38.1mm).
(higher on application).
Fin Thickness: 0.036–0.05 Inch (0.9–1.27mm).
Fin Spacing: 1–7 per inch (39–276 per metre).
Tube Outside Diameter: 0.75–8 Inch (19.05–219.1mm) Segment Width: 5/32 Inch, 5/16 Inch (4.5mm, 8.0mm).
Material: Any material or combination that can be resistance or arc welded.
PRODUCT SPECIFICATION
Our machines are capable of handling tube / pipe sizes from 25mm OD to 219mm OD in carbon, alloy and stainless steels, as well as high nickel alloys. Fin sizes range from 6mm to 38mm high and from 1mm to 3mm thick in carbon steel, stainless steels (300 and 400 series) and high nickel alloys. Serrated fins are available in 4.5mm and 8mm segment widths.

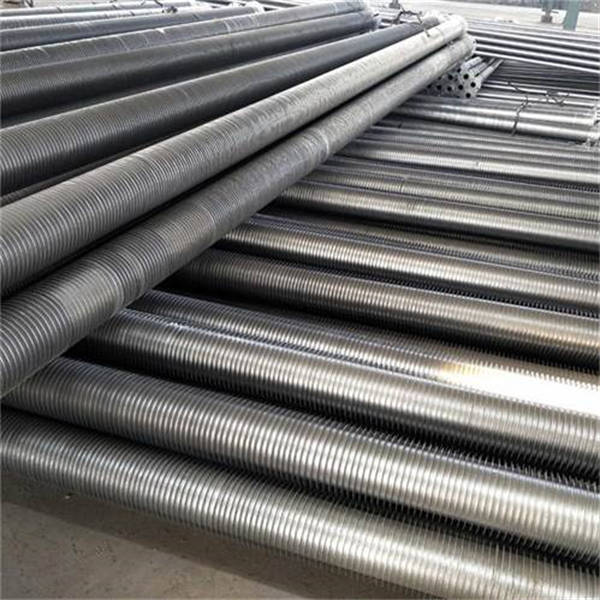

High frequency welded spiral finned tube is one of the most widely used finned tubes. It is a plain type fin, made by helically winding the fin strip on edge around the tube. The fin is continuously welded to the tube by a high frequency electrical resistance welding process which leaves the tube essentially unchanged metallurgically. The width of the weld is always greater than 90 percent of the thickness of the fin, assuring a strong bond between the fin and the tube for efficient heat transfer and long life. Solid fins are preferred in fouling applications. The finished finned tube is extremely strong mechanically and has greater resistance to bursting pressure than the bare tube due to the reinforcing effect of the fin. Because of its excellent strength and resistance to deformation, this tubes are well suited for applications where severe abuse is expected in service.
Tube Outside Diameter: 0.75–8 Inch (19.05–219.1mm) Segment Width: 5/32 Inch, 5/16 Inch (4.5mm, 8.0mm).
Material: Any material or combination that can be resistance or arc welded.
PRODUCT SPECIFICATION
Our machines are capable of handling tube / pipe sizes from 25mm OD to 219mm OD in carbon, alloy and stainless steels, as well as high nickel alloys. Fin sizes range from 6mm to 38mm high and from 1mm to 3mm thick in carbon steel, stainless steels (300 and 400 series) and high nickel alloys. Serrated fins are available in 4.5mm and 8mm segment widths.
High frequency welded spiral finned tube is one of the most widely used finned tubes. It is a plain type fin, made by helically winding the fin strip on edge around the tube. The fin is continuously welded to the tube by a high frequency electrical resistance welding process which leaves the tube essentially unchanged metallurgically. The width of the weld is always greater than 90 percent of the thickness of the fin, assuring a strong bond between the fin and the tube for efficient heat transfer and long life. Solid fins are preferred in fouling applications. The finished finned tube is extremely strong mechanically and has greater resistance to bursting pressure than the bare tube due to the reinforcing effect of the fin. Because of its excellent strength and resistance to deformation, this tubes are well suited for applications where severe abuse is expected in service.
