Jacketed Gate Valve, API 600, ASTM A351 CF8, 3 IN, CL300, BW

This Jacketed Wedge Gate Valve is built to ANSI B16.34 and API 600 standards, offering robust flow control for process systems requiring thermal insulation. Constructed from cast stainless steel ASTM A351 CF8, it comes in a 3-inch (DN80) size with a pressure rating of Class 300 LB (PN50). Designed with butt weld ends for secure, leak-proof connections, the jacketed body allows for efficient media temperature maintenance, making it ideal for viscous or temperature-sensitive fluids.

Product Name: Jacketed Wedge Gate Valve
Type: Wedge Gate Valve
Design Standard: ANSI B16.34, API 600
Body Material: ASTM A351 CF8
Size: 3 Inch, DN80
Pressure: Class 300 LB, PN50
End Connection: BW
Operation: Handwheel
Medium: Water, Oil, Gas, etc
Temperature Range: -29°C to 595°C

Cast Steel Gate Valves are engineered to ensure VOC (volatile organic compound) leakage of less than 100 ppm (parts per million). This performance is achieved through extensive baseline laboratory testing—including static and cycle testing—which has helped define the critical design parameters necessary for low-emission sealing at both the stem packing and bonnet gasket areas. KOSEN also implements an in-house testing procedure that is periodically performed to confirm that each valve consistently meets the 100 ppm VOC leakage standard before shipment.

Technical Specification

» Nominal diameter: NPS 2-24 Inch (DN50-DN600)
» Design pressure: Class 150-600 LB (PN10-PN100)
» Material: ASTM A216 WCB, WCC, A217 WC6, WC9, C5, C12A, A352 LCB, LCC, A351 CF8, CF8M, CF3M, CF8C, CN3MN
» End connections: RF, RTJ, BW
» Operation: Handwheel, Bevel Gear, Electric, Pneumatic
» Design and manufacture standards: ANSI B16.34, API 600, API 6D, API 603, BS 1414
» Face-to-face (end-to-end): ANSI B16.10, API 6D
» Flanged connection: 2–24 Inch to ANSI B16.5; 22 Inch, 26–36 Inch to MSS-SP-44 or API 605 upon request
» Test and inspection standards: API 598, API 6D
» Butt-welded end: ANSI B16.5

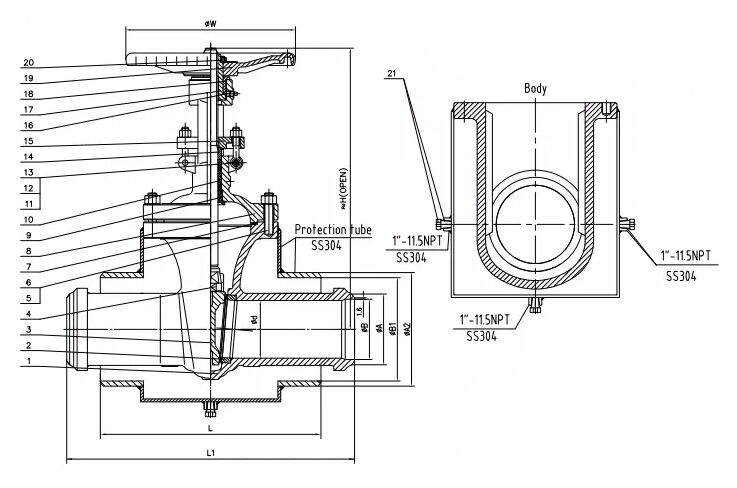

Structural Diagram

Product Features

» Anti-friction ball thrust bearing: Reduces friction between mating parts for smoother operation
» Grub screw: Secures the yoke nut in the bonnet
» Grease nipple: Provides lubrication to moving parts
» OS&Y (Outside Stem and Yoke) design
» Metal-seated with API Trim #1, #5, #8, #10, etc.
» Optional locking device or stem extension available
» Optional ISO 5211 direct mounting
» Full port design for minimal flow restriction
