Steam Jacketed Plug Valve, Class 150, 300, 600LB

Steam Jacketed Plug Valve, Class 150, 300, 600LB

Model Number: SJ-PV-06

Key Specifications / Features

China Jacketed Plug Valve Manufacturer Shinjo Supplies Steam Jacketed Plug Valve, Class 150, 300, 600LB.
Class 150 Class 300 Class 600
Share:

Detail Information

Plug valves are valves with round or conically tapered "plugs" which may be rotated within the valve body to manage flow with the valve. The plugs in plug valves have a number of hollow passageways going sideways with the plug, to ensure that fluid can flow with the plug once the valve is open. Plug valves are pretty straight forward and frequently economical.

Dimensions

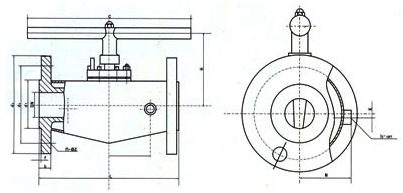

Steam Jacketed Plug Valve
DN L d1 d2 d3 b f c H K M N N-ФZ
150 Lbs
1/2 108 51 79.5 108 11 2 300 150 0 25 35 4-15
3/4 117 73 98.5 127 11 2 300 155 0 25 40 4-15
1 127 92 120.5 152 12 2 300 160 0 25 45 4-19
11/4 140 92 120.5 152 13 2 350 160 0 25 50 4-19
11/2 165 127 152.5 190 15 2 400 190 0 40 70 4-19
2 178 127 152.5 190 16 2 500 200 0 40 70 4-19
21/2 190 127 152.5 190 18 2 500 220 0 40 80 4-19
3 203 157 190.5 279 19 2 500 230 0 40 100 8-19
4 229 216 241.5 279 22 2 / 380 0 50 100 8-22
5 254 216 241.5 279 24 2 / 460 0 50 120 8-22
6 267 270 298.5 343 26 2 / 520 0 50 150 8-22
8 292 324 362 406 29 2 / 580 0 80 170 12-25
10 330 381 432 483 31 2 / 620 0 80 190 12-25
12 356 413 476 533 32 2 / 680 0 80 200 12-29
300 Lbs
1/2 140 51 89 124 15 2 300 150 0 25 35 4-19
3/4 152 73 114.5 156 16 2 300 155 0 25 40 4-22
1 165 92 127 165 18 2 300 160 0 25 45 8-19
11/4 178 92 127 165 19 2 350 180 0 25 50 8-19
11/2 190 127 168.5 210 21 2 400 190 0 40 70 8-22
2 216 127 168.5 210 23 2 500 200 0 40 70 8-22
21/2 241 127 168.5 210 26 2 500 220 0 40 80 8-22
3 283 157 200 254 29 2 500 230 0 40 100 8-22
4 305 216 270 318 32 2 / 380 0 50 100 12-22
5 381 216 270 318 35 2 / 460 0 50 120 12-22
6 403 270 330 381 37 2 / 520 0 50 150 12-25
8 419 324 387.5 445 42 2 / 580 0 80 170 16-29
10 457 381 451 521 48 2 / 620 0 80 190 16-32
12 502 413 514.5 584 51 2 / 680 0 80 200 20-32
600 Lbs
1/2 165 51 89 124 22 7 300 150 0 25 50 4-19
3/4 190 73 114.5 156 23 7 300 155 0 25 50 4-22
1 216 92 127 165 25 7 300 160 0 25 50 8-19
11/4 229 92 127 165 28 7 350 180 0 25 60 8-19
11/2 241 127 168 210 30 7 400 190 0 40 80 8-22
2 292 127 168 210 33 7 500 200 0 40 80 8-22
21/2 330 127 168 210 36 7 500 220 0 40 90 8-22
3 356 157 216 273 39 7 / 230 0 40 110 8-25
4 432 216 292 356 45 7 / 380 0 50 110 12-29
5 508 216 292 356 52 7 / 460 0 50 130 12-29
6 559 270 349 419 55 7 / 520 0 50 160 12-32
8 660 324 432 508 63 7 / 580 0 80 180 16-35
10 787 381 489 559 71 7 / 620 0 80 200 20-35
12 838 413 527 603 74 7 / 680 0 80 210 20-38
