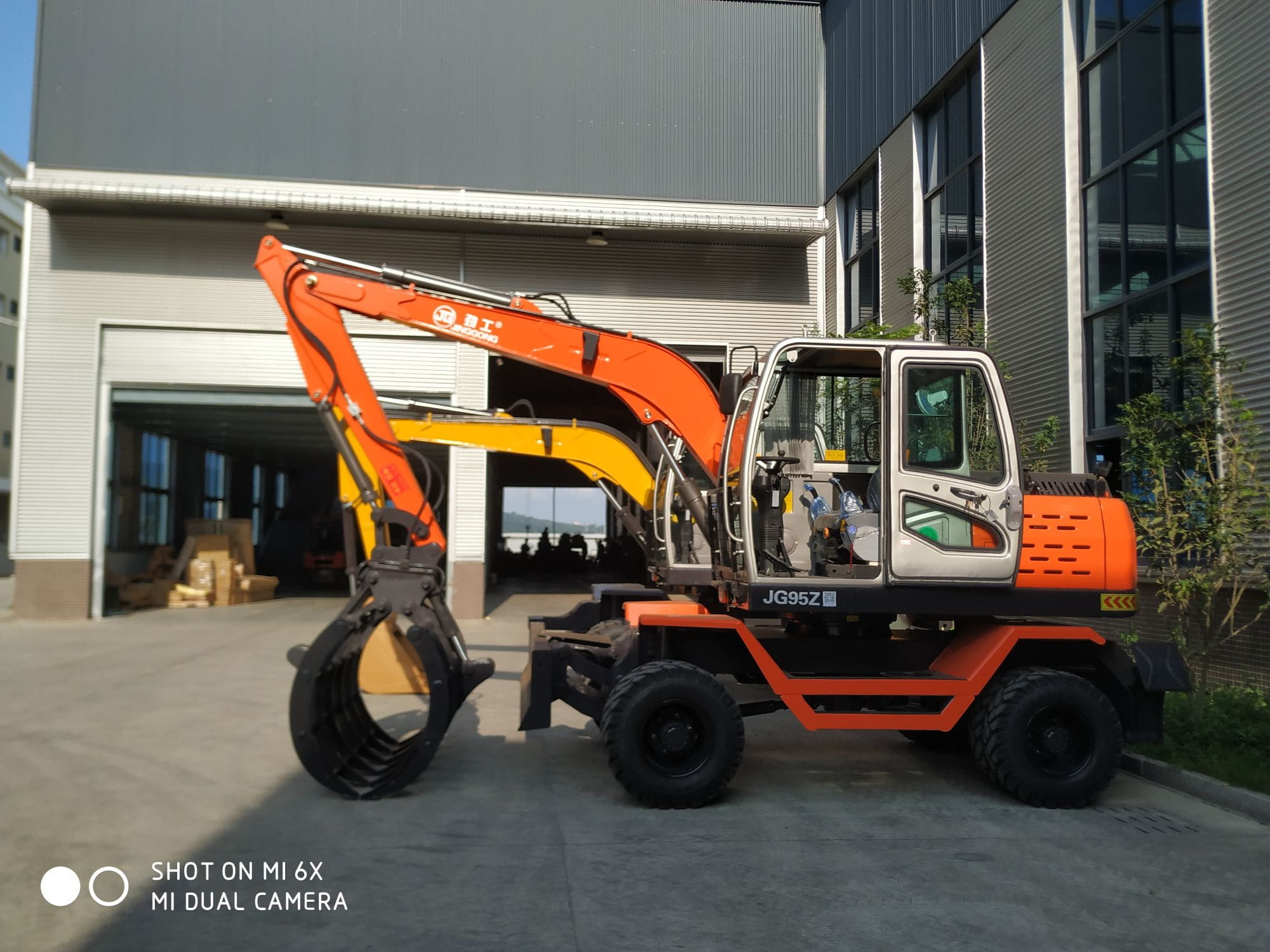

Wheeled Grab Digger Excavators with Bulldozer and Outstriger

Name: China Manufacturers
Address: Room 2607, Meixin Plaza, No. 879 Xiahe Road, Siming District, Xiamen, CHINA
Telephone: 13276021100
Price range: $$$

Aug 17, 2023

Operating Weight: 7400 kg, 7.4 Tons
Engine Power: 65 kw
Tail Swing Radius: 1980 mm
Bucket capacity: 0.3 m³
Walking Speed: 25 km/h
Grab Max Opening Width: 1250 mm
Grab Min Opening Width: 80 mm
Max Digging Radius: 7500 mm
Max Dumping Height: 5500 mm
Max Radius Weight Capacity: 400 kg
Gradeability: 30 °/58%

SPECIFICATION
Range Of Operation
Boom Length	3680mm
Arm Length	2000mm
Max Digging Radius	7500mm
Grab The Biggest Opening Width	1250mm
Grab The Minimum Opening Width	80mm
Maximum Radius Weight Capacity	400kg
Grapple Rotation Angle	360°
Max Dumping Height	5500mm
Back-End Radius of Gyration	1980mm
Bucket Capacity	0.3m3
Dimension
(LengthWidthHeight) Travel Position	645023302930mm
Wheel Base	2400mm
Track(Front/Rear)	1660mm/1580mm
Ground Clearance of Counterweight	1060mm
Min Ground Clearance	265mm
Technical Parameters
Angle of Rotation	360°
Machine Weight	7400kg
Engine Model	YN38GBZ1 Engine
Rated Power	65KW
Rated Speed	2400r/min
Hydraulic System Working Pressure	20Mpa
Hydraulic System Flow	150L/min
Variable Piston Pump	71ml/r
Grapple Swing Speed	12r/min
Walking Speed	25km/h
Grade Climbing Ability	58%/30°
Tyre Model	825.16
Revolution Overdrive Pressure	16Mpa
Full Circle Swinging Time	5.5s
Fqt Fuel Quantity	≥4L/h
Hydraulic Tank Capacity	110L
Capacity of The Fuel Tank	110L
