PN 2.5 Flanges DIN EN 1092-1

Name: China Manufacturers
Address: Room 2607, Meixin Plaza, No. 879 Xiahe Road, Siming District, Xiamen, CHINA
Telephone: 13276021100
Price range: $$$

May 19, 2019

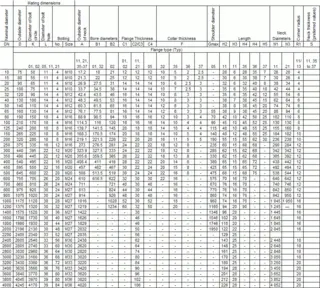

Dimensions of PN 2.5 Flanges DIN EN 1092-1

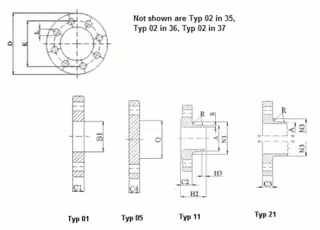

NOTE 1: Dimensions N1, N2 and N3 are measured at the intersection of the hub draft angle and the back face of the flange.

NOTE 2: For d1 dimensions see document "Flange facing according to DIN EN 1092-1".

Dimensions in mm

** For flanges type 21 the outside hub diameter approximately corresponds to the outside pipe diameter.
