ASTM A216 WCB Ball Check Valve, 1 IN, 3000 PSI, NACE MR0175
Product Name: ASTM A216 WCB Ball Check Valve, Full Port
Body Material: ASTM A216 WCB
Size: 1 Inch, DN25
Pressure: 3000 PSI
Seat and Seal: Viton
End Connection: NPT Threaded
NACE MR0175 Compliant
This ball type check valve is available in ductile iron, carbon steel, and aluminum bronze, in sizes 1-2 Inch. Stainless steel ball are standard. Expect an extended life made possible by this valves patented Hinge-Works feature. The valve is suitable for use in a variety of industrial applications, including hydraulics, pneumatics, pumps, and plumbing. The ball type check valve is an ideal choice for oil & gas production lines where back flow is a concern. The ball type check valve offers simplicity and is easily repairable. The function of the check valve is to prevent the backflow of medium in the pipeline.
Technical Specification
Size Range: NPS 1-2 Inch (DN25-DN50)
Pressure Range: 1000 to 5000 PSI WP
Ductile Iron: 1000 to 2000 WOG
Carbon Steel & Stainless Steel: 2000 to 5000 WOG
Materials: Ductile Iron, Carbon Steel, Stainless Steel
Temperature Range: -20°C to 80°C
End Connections: Threaded ends to ANSI B1.20.1 (NPT)
Medium: Water, Oil, Gas
Inspection and Testing: According to API 598

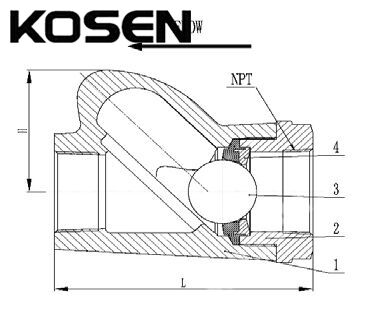

Main Parts and Materials
|
No. |
Part Name |
Material |
||
|
1 |
Body |
ASTM A395 DI |
ASTM A216 WCB |
ASTM A351 CF8M |
|
2 |
Bonnet |
ASTM A395 DI |
ASTM A216 WCB |
ASTM A351 CF8M |
|
3 |
Ball |
SS 316 |
SS 316 |
SS 316 |
|
4 |
Seat |
VITON |
VITON |
VITON |
Main Dimensions (mm)
|
Material |
Size |
Model |
End |
Pressure |
L |
H |
Weight(kg) |
|
Ductile Iron |
1 Inch |
KBD06-10 |
FNPT |
1000 PSI |
114 |
52 |
1.7 |
|
1 Inch |
KBD06-15 |
FNPT |
1500 PSI |
114 |
52 |
1.7 |
|
|
1 Inch |
KBD06-20 |
FNPT |
2000 PSI |
114 |
52 |
1.7 |
|
|
2 Inch |
KBD09-10 |
FNPT |
1000 PSI |
168 |
85 |
5.4 |
|
|
2 Inch |
KBD09-15 |
FNPT |
1500 PSI |
168 |
85 |
5.4 |
|
|
2 Inch |
KBD09-20 |
FNPT |
2000 PSI |
168 |
85 |
5.4 |
|
|
Carbon Steel |
1 Inch |
KBC06-20 |
FNPT |
2000 PSI |
114 |
52 |
1.75 |
|
1 Inch |
KBC06-30 |
FNPT |
3000 PSI |
114 |
52 |
1.75 |
|
|
1 Inch |
KBC06-50 |
FNPT |
5000 PSI |
114 |
52 |
1.75 |
|
|
2 Inch |
KBC09-20 |
FNPT |
2000 PSI |
168 |
85 |
5.65 |
|
|
2 Inch |
KBC09-30 |
FNPT |
3000 PSI |
168 |
85 |
5.65 |
|
|
2 Inch |
KBC09-50 |
FNPT |
5000 PSI |
168 |
85 |
5.65 |
|
|
Stainless Steel |
1 Inch |
KBS06-20 |
FNPT |
2000 PSI |
114 |
52 |
1.8 |
|
1 Inch |
KBS06-30 |
FNPT |
3000 PSI |
114 |
52 |
1.8 |
|
|
1 Inch |
KBS06-50 |
FNPT |
5000 PSI |
114 |
52 |
1.8 |
|
|
2 Inch |
KBS09-20 |
FNPT |
2000 PSI |
168 |
85 |
5.7 |
|
|
2 Inch |
KBS09-30 |
FNPT |
3000 PSI |
168 |
85 |
5.7 |
|
|
2 Inch |
KBS09-50 |
FNPT |
5000 PSI |
168 |
85 |
5.7 |
