End Dump Trailers, Tri Axle, 27-40 m3, Kerb Weight 9300-10500kg

Name: China Manufacturers
Address: Room 2607, Meixin Plaza, No. 879 Xiahe Road, Siming District, Xiamen, CHINA
Telephone: 13276021100
Price range: $$$

Mar 31, 2018

End Dump Trailers

SPECIFICATION

27cbm-40cbm 3-axle tipper semi-trailers
Feature	Transporting sand, stone, mine, garbage, etc.
Dimension(LWH)	970024803300 mm (27 CBM) 1010024803300 mm (33 CBM)
Mainframe	Heavy duty and extra durability design adopting high tensible low carbon alloy steel Q345B and I beam welded by automotive arc-submerge process
The thickness of body	Side wall 6mm Bottom floor 8mm
Model	JS9600TJZT
Capacity(CBM)	27 CBM-40 CBM
Curb weight(kgs)	9,300 kgs (27 cbm) 10,500 kgs (33 cbm)
Kingpin	The world-famous JOST brand bolt-in/welded type 3.5"/2"
Landing gear	JOST brand two-speed manual operation 19"
Tire size	11.00R20, 11R22.5, 12R22.5, 315/80R22.5 and 385/65R22.5
Rim size	8.2522.5, 9.0022.5 and 11.75*22.5
Axle	Original BPW-12T/FUWA-13T
Suspension	Germany type with 12pcs of leafs spring/Fuwa brand with 8pcs of leaf springs/Airbag suspension
Brake system	Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber and 46L air tank
Electric system	One unit of 24V 7-pin ISO standard socket with brake light, turn light, reverse light, side light, fog light, reflector and one set of 6-pin standard cable
Hydraulic system	Hyva brand
Painting	S.A.2.5 standard sandblasting, two coat of anti-corrosion prime and one coat of finish painting
Accessory	One tool box; one set of standard tool
We can manufacture the trailers according to customers’ designs and requirements.

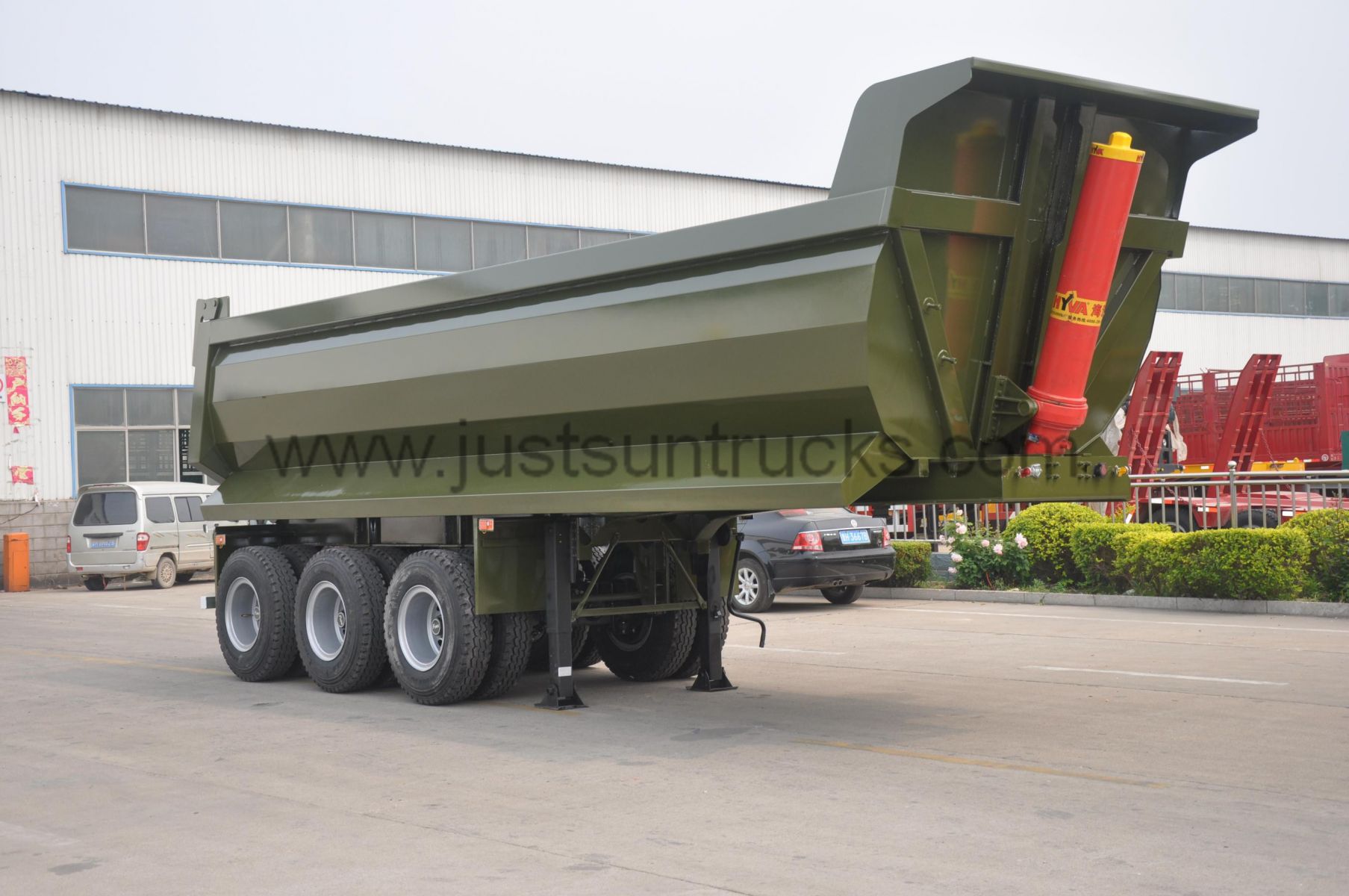

end-dump-trailers-tri-axle-27-40-m3-kerb-weight-9300-10500kg-01

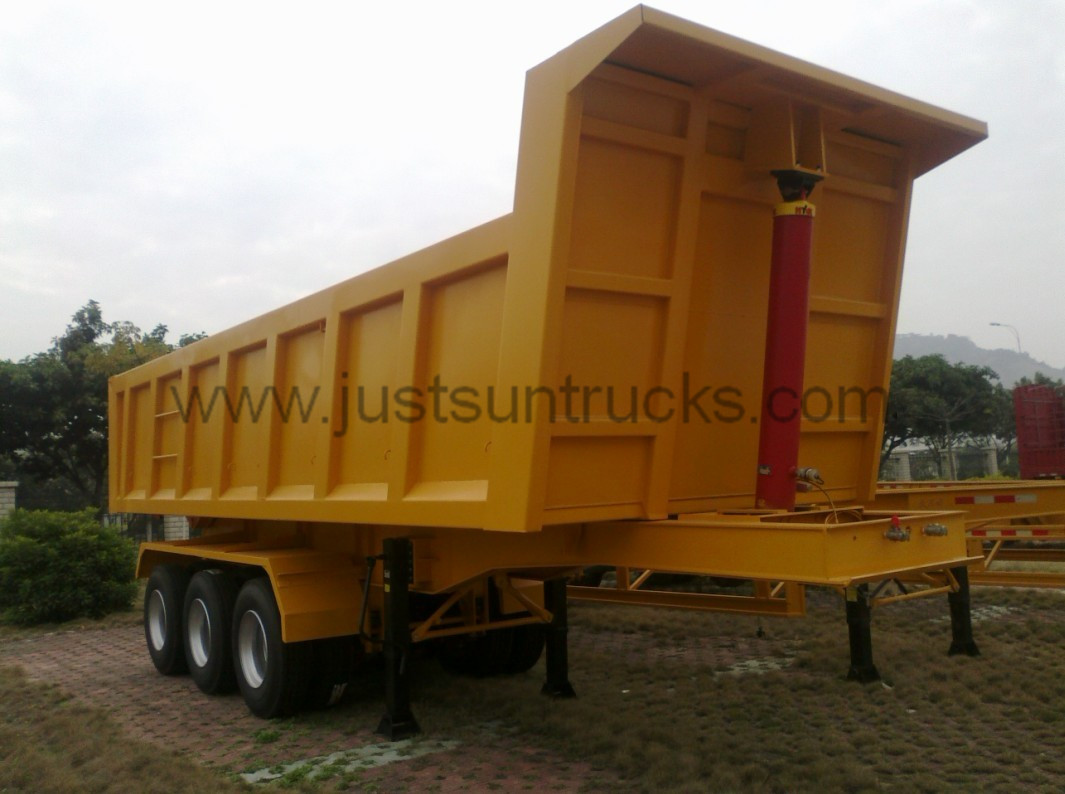

end-dump-trailers-tri-axle-27-40-m3-kerb-weight-9300-10500kg-02
