End Dump Trailers, Tri Axle, 27-40 m3, Kerb Weight 9300-10500kg
Model Number: JS-ST-02
Key Specifications / Features
Justsun Tri Axle End Dump Trailers, Hydraulic Semi Dump Trailers, Heavy Duty Tipper Trailers Are Available with Capacities from 27 m3 to 40 m3, Tare Weights from 9300kg to 10500kg (20502 lbs to 23148 lbs). Durable Rear Dump Trailers Are Sure to Dump Your Heavy Loads of Sands, Debris, Rocks, Garbage, etc. Please Contact!
Detail Information

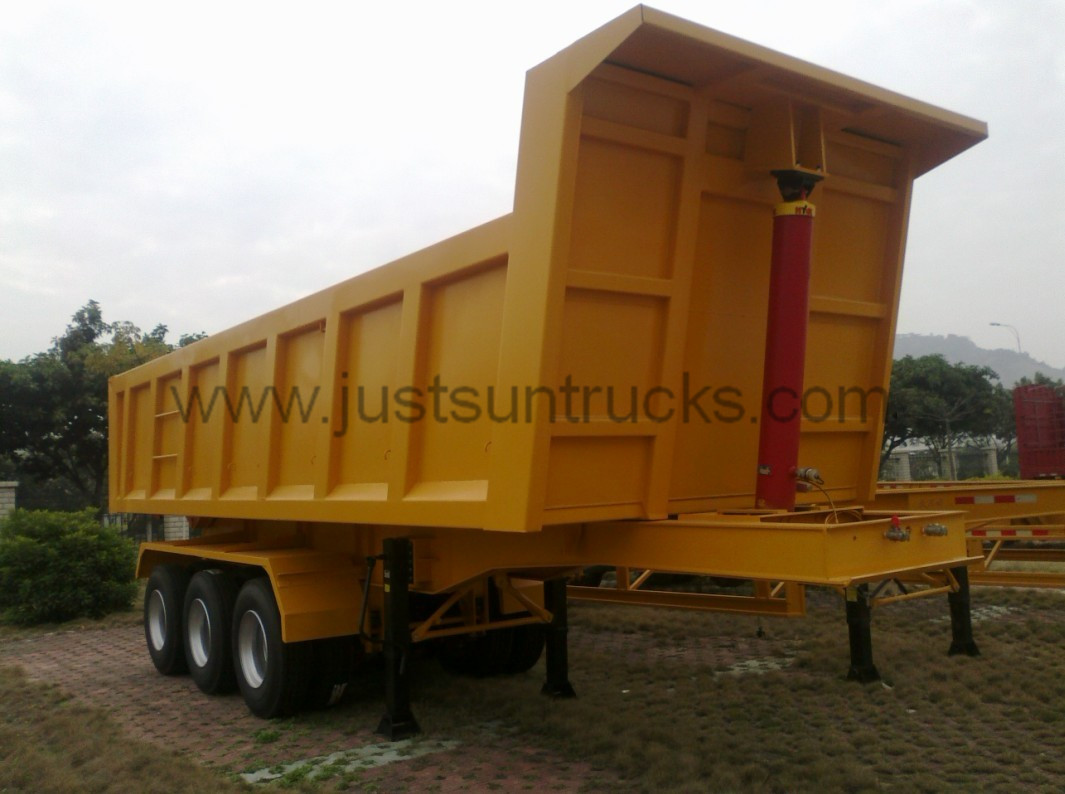

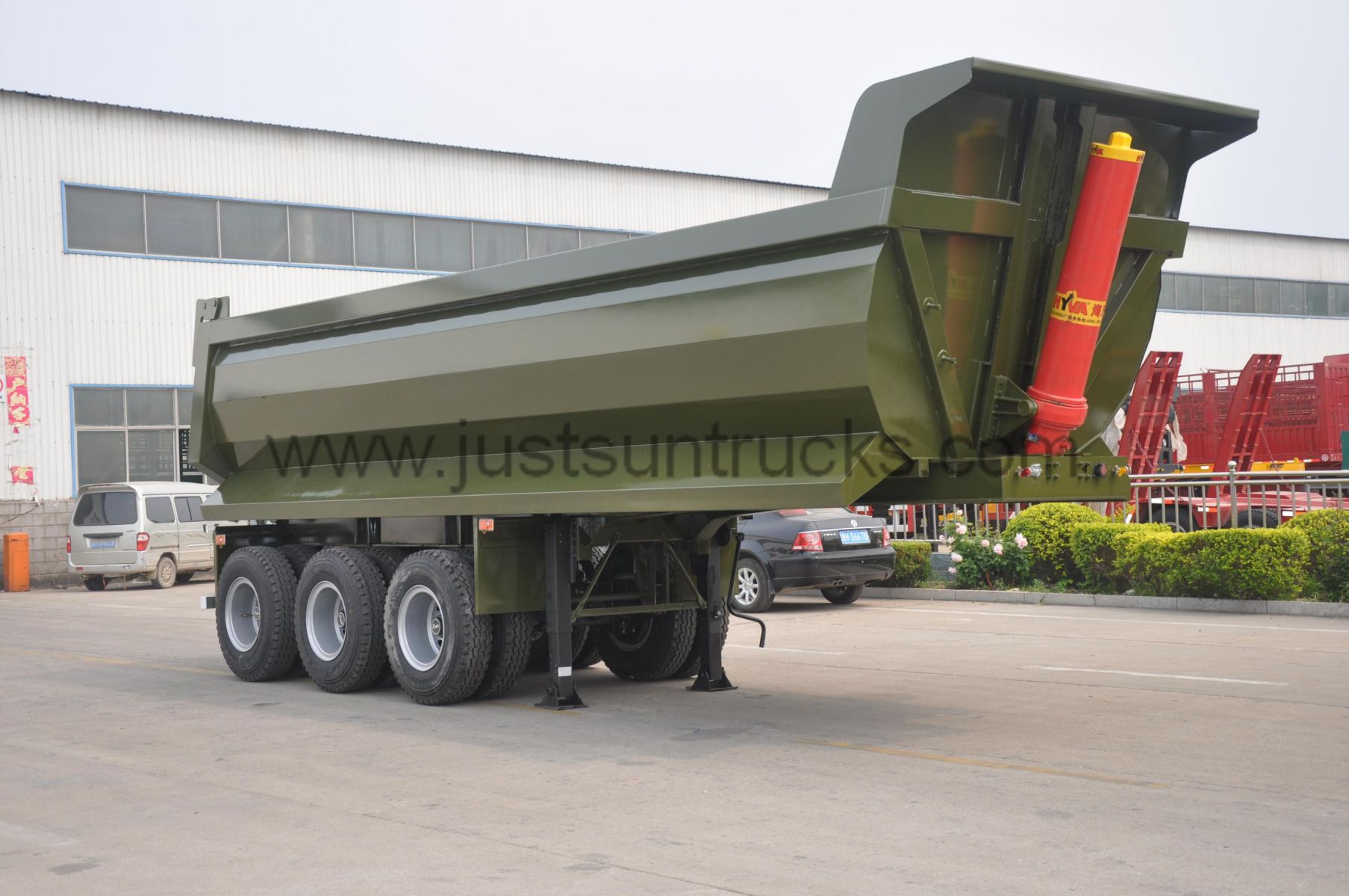

End Dump Trailers
SPECIFICATION
SPECIFICATION
| 27cbm-40cbm 3-axle tipper semi-trailers | |
| Feature | Transporting sand, stone, mine, garbage, etc. |
| Dimension(L*W*H) | 9700*2480*3300 mm (27 CBM) 10100*2480*3300 mm (33 CBM) |
| Mainframe | Heavy duty and extra durability design adopting high tensible low carbon alloy steel Q345B and I beam welded by automotive arc-submerge process |
| The thickness of body | Side wall 6mm Bottom floor 8mm |
| Model | JS9600TJZT |
| Capacity(CBM) | 27 CBM-40 CBM |
| Curb weight(kgs) | 9,300 kgs (27 cbm) 10,500 kgs (33 cbm) |
| Kingpin | The world-famous JOST brand bolt-in/welded type 3.5"/2" |
| Landing gear | JOST brand two-speed manual operation 19" |
| Tire size | 11.00R20, 11R22.5, 12R22.5, 315/80R22.5 and 385/65R22.5 |
| Rim size | 8.25*22.5, 9.00*22.5 and 11.75*22.5 |
| Axle | Original BPW-12T/FUWA-13T |
| Suspension | Germany type with 12pcs of leafs spring/Fuwa brand with 8pcs of leaf springs/Airbag suspension |
| Brake system | Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber and 46L air tank |
| Electric system | One unit of 24V 7-pin ISO standard socket with brake light, turn light, reverse light, side light, fog light, reflector and one set of 6-pin standard cable |
| Hydraulic system | Hyva brand |
| Painting | S.A.2.5 standard sandblasting, two coat of anti-corrosion prime and one coat of finish painting |
| Accessory | One tool box; one set of standard tool |
| We can manufacture the trailers according to customers’ designs and requirements. | |
