10.5meter (47seats) COACH Configuration

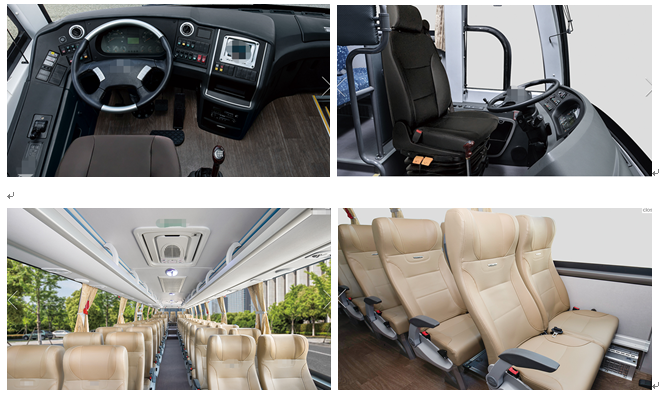

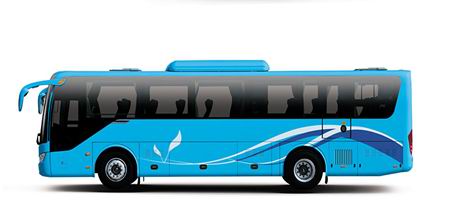

Pictures for your reference. The body color and drawing can be designed according to the requirements.

TECHNICAL SPECIFICATIONS

Dimensions and Weight

Length (mm)	10700
Width(mm)	2500
Height(mm)	3300
Wheelbase(mm)	5350
Curb Weight (kg)	10700
Maximum Total Mass (kg)	16500

Engine

Engine Type	WEICHAI,WP7.270 20
Engine Location	Rear
Engine Displacement	7.4L
Fuel Type	Diesel
Maximum Power	270 PS (198 KW) / 2300 rpm.
Maximum Torque	1160 N.m / 1200-1700 rpm.
Emission Standard	Euro II

Chassis

Direction (LHD/RHD)	LHD
Clutch	Diaphragm spring clutch Ф420 Pull type
Transmission	Manual 6-gear transmission
Axles	5.5t Front axles 11t Rear axles
Brake System	Front/Rear Disc ABS Retarder
Suspension	Spring
Steering System	Power-assisted steering
Tyre	Chinese tubeless tire 11R22.5 Steel rub 1 spare tire
Fuel Tank Capacity	220L

Body

Air Conditioner	Roof-mounted,30000 Kcal/h
Doors	Out-swing passenger front and middle door
Side Windows	Fully-enclosed side windows with white toughened glass; Sliding tail window.
Seating Arrangement	45 Passenger seat +1 Folding guide seat +1 Driver's seat (2+2 seat arrangement)
Seats	Adjustable driver's seat with three-point seat belt
	Folding guide seat with two-point seat belt
	Double passenger seat :fabric,all seats with two-point safety belt
Roof-mounted Emergency Window	Two emergency roof windows with ventilator function
Audio Visual System	DVD player
Other Equipment	Passenger independent reading lamp and air conditioner outlet
	Electronic clock
	Curtain, include driver's curtain
	Safety hammer
	Two 2kg fire extinguishers
