10.5 Meter 47 Seats Custom Coach, Euro II, 10700*2550*3300mm
Key Specifications / Features
10.5 Meter 47 Seats Custom Coach Provider: 10.5 Meter Custom Coach, 10700*2550*3300mm, 47 Seats, Euro II, Diesel Fuel, Customized Body Color and Drawing.
Detail Information
10.5meter (47seats) COACH Configuration

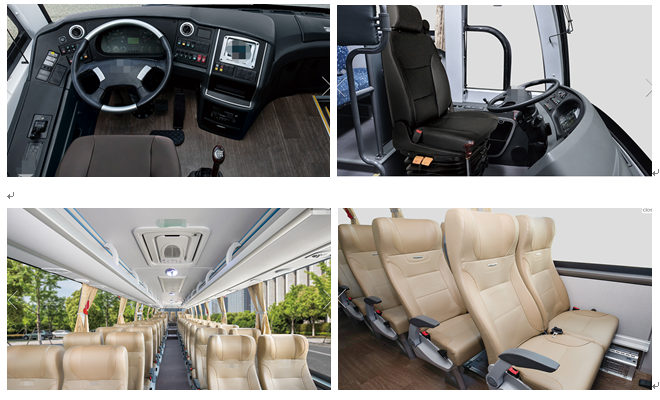

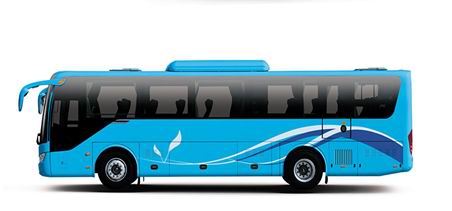

Pictures for your reference. The body color and drawing can be designed according to the requirements.
TECHNICAL SPECIFICATIONS
Dimensions and Weight
Engine
Chassis
Body
Pictures for your reference. The body color and drawing can be designed according to the requirements.
TECHNICAL SPECIFICATIONS
Dimensions and Weight
| Length (mm) | 10700 |
| Width(mm) | 2500 |
| Height(mm) | 3300 |
| Wheelbase(mm) | 5350 |
| Curb Weight (kg) | 10700 |
| Maximum Total Mass (kg) | 16500 |
Engine
| Engine Type | WEICHAI,WP7.270 20 |
| Engine Location | Rear |
| Engine Displacement | 7.4L |
| Fuel Type | Diesel |
| Maximum Power | 270 PS (198 KW) / 2300 rpm. |
| Maximum Torque | 1160 N.m / 1200-1700 rpm. |
| Emission Standard | Euro II |
Chassis
| Direction (LHD/RHD) | LHD |
| Clutch | Diaphragm spring clutch Ф420 Pull type |
| Transmission | Manual 6-gear transmission |
| Axles | 5.5t Front axles 11t Rear axles |
| Brake System | Front/Rear Disc ABS Retarder |
| Suspension | Spring |
| Steering System | Power-assisted steering |
| Tyre | Chinese tubeless tire 11R22.5 Steel rub 1 spare tire |
| Fuel Tank Capacity | 220L |
Body
| Air Conditioner | Roof-mounted,30000 Kcal/h |
| Doors | Out-swing passenger front and middle door |
| Side Windows | Fully-enclosed side windows with white toughened glass; Sliding tail window. |
| Seating Arrangement | 45 Passenger seat +1 Folding guide seat +1 Driver's seat (2+2 seat arrangement) |
| Seats | Adjustable driver's seat with three-point seat belt |
| Folding guide seat with two-point seat belt | |
| Double passenger seat :fabric,all seats with two-point safety belt | |
| Roof-mounted Emergency Window | Two emergency roof windows with ventilator function |
| Audio Visual System | DVD player |
| Other Equipment | Passenger independent reading lamp and air conditioner outlet |
| Electronic clock | |
| Curtain, include driver's curtain | |
| Safety hammer | |
| Two 2kg fire extinguishers |
