Butt Welded Cryogenic Gate Valve, Extended F304L Body, CL1500, 1 In
FORGED STAINLESS STEEL CRYOGENIC GATE VALVE - Butt Welded (BW), Extended Body
STANDARD MATERIALS
SPECIFICATIONS
⑴ Design and Manufacture Conform to: API 602, BS 6364, MSS SP-134, ASME B16.34/ B16.11/ B1.20.1/ B16.25.
⑵ Valve Size: 1/2 - 4 Inch.
⑶ Applicable Rating: Class 150 LB - 1500 LB.
⑷ Temperature Rating: Down to -196℃.
⑸ Structure Features:
★ End Connection: Threaded, Socket-Welded or Butt-Welded
★ Long Extended Bonnet
★ Actuator: Handwheel
★ Pressure Relief Design ( Pressure Balance Design)
★ Fire Safety / Anti-static Design
★ Non-Rising Handwheel
STANDARD MATERIALS
| PART NAMES | MATERIALS |
| BODY | F304(L); F316(L) |
| BONNET | F304(L); F316(L) |
| SEAT | ASTM A276 304(L) / 316(L) + HF |
| WEDGE | ASTM A276 304(L) / 316(L) |
| STEM | ASTM A276 304(L) / 316(L) |
| GASKET | 304 + GRAPHITE |
| HANDWHEEL | ASTM A197 |
| PACKING | GRAPHITE |
| GLAND | ASTM A276 304(L) / 316(L) |
SPECIFICATIONS
⑴ Design and Manufacture Conform to: API 602, BS 6364, MSS SP-134, ASME B16.34/ B16.11/ B1.20.1/ B16.25.
⑵ Valve Size: 1/2 - 4 Inch.
⑶ Applicable Rating: Class 150 LB - 1500 LB.
⑷ Temperature Rating: Down to -196℃.
⑸ Structure Features:
★ End Connection: Threaded, Socket-Welded or Butt-Welded
★ Long Extended Bonnet
★ Actuator: Handwheel
★ Pressure Relief Design ( Pressure Balance Design)
★ Fire Safety / Anti-static Design
★ Non-Rising Handwheel
Send your message to this supplier
Related Articles from the Supplier
Welded Ball Valves
- Jul 24, 2019
Butterfly Valves with Extended Stem
- Aug 21, 2019
How do cryogenic valves work?
- Nov 01, 2019
Forged Steel Valve's Development in China
- Nov 29, 2018
Related Articles from China Manufacturers

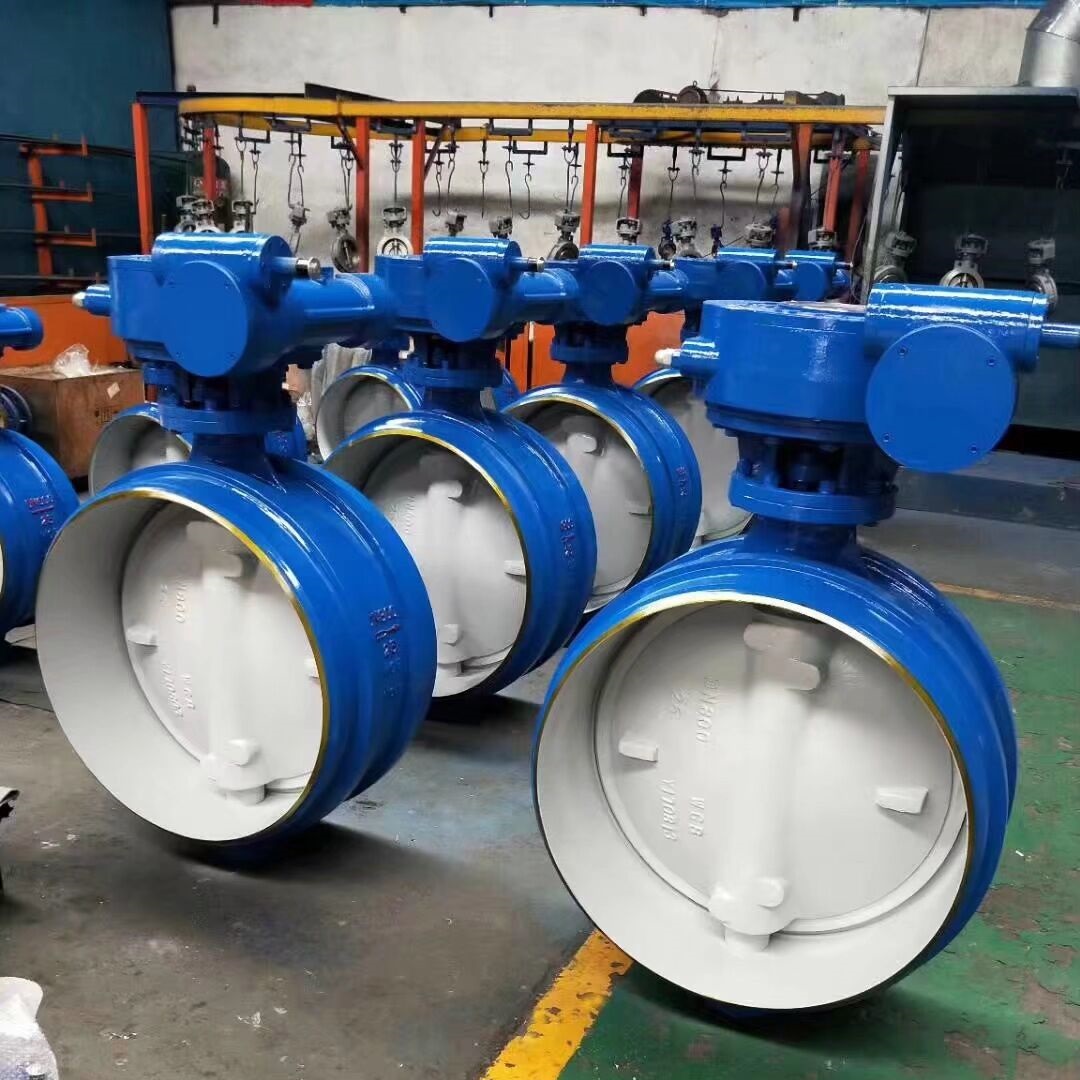

JONLOO Bi-directional Butt Welded Butterfly Valves
