Reduced Bore Orbit Plug Valve, API 6D, WCB, 10 Inch, 600 LB

Name: Reduced Bore Orbit Plug Valve, API 6D, WCB, 10 Inch, 600 LB
SKU: KV-20250124-OPV-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The Reduced Bore Orbit Plug Valve features a twin seal design for enhanced leak prevention and is compliant with API 6D, API 599 standards. Made from ASTM A216 WCB, this 10-inch valve (DN250) is rated for Class 600 LB and PN100 pressure classes. It comes with RTJ flanged ends, ensuring reliable sealing and performance in demanding applications

Request a quote

Detail Information

Product Name: Twin Seal Orbit Plug Valve, Reduced Bore
Design Standard: API 6D, API 599
Body Material: ASTM A216 WCB
Size: 10 Inch, DN250
Pressure: Class 600 LB, PN100
End Connection: RTJ
Operation: Handwheel

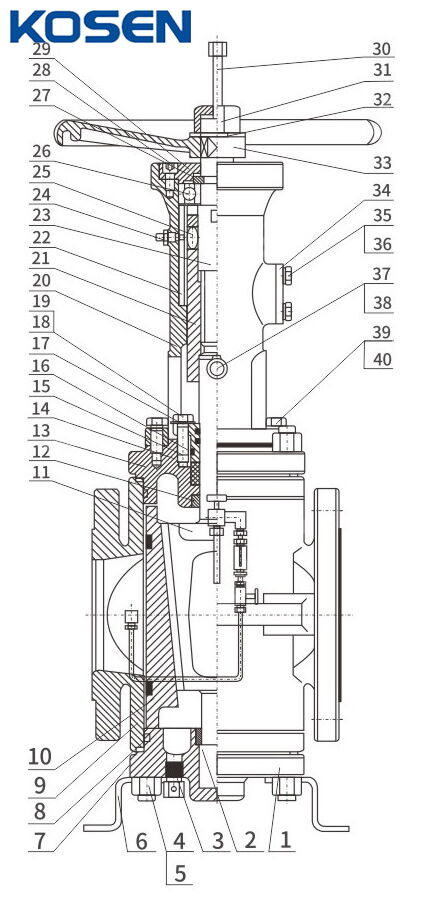

When the twin seal orbit valve is fully open, the plug and valve body channels align, ensuring the ideal minimum pressure. Turning the handwheel moves the plug towards the valve, causing the valve disc to rotate 90 degrees. As the handwheel keeps turning, the plug is pressed down, opening the valve on both sides. The valve disc is then tightly pressed against the valve seat, closing the valve. Rotating the handwheel in the opposite direction lifts the plug, releasing the valve disc from the seat. Continuing to turn the handwheel rotates the valve disc 90 degrees, aligning the plug with the valve body channel to fully open the valve.

Technical Specifications

» Structure: Twin Seal Orbit Plug Valve
» Nominal Diameter: NPS 2-36 Inch (DN50-DN900)
» Design Pressure: Class 150-900 LB(PN20-PN150)
» Materials: ASTM A216 WCB, WCC, A217 WC6, WC9, C5, A352 LCB, LCC, A351 CF8, CF8M, CF3, CF3M, CF8C
» Design Standards: API 6D, API 599
» Face-to-Face: ASME B16.10
» Connection Ends: RF, RTJ
» Test Standards: API 598, ISO 5208
» Design Temperature: -46°C to +300°C
» Applicable Mediums: Water, steam, oil, gas, etc.
» Operation: Lever, Gearbox, Electric, Pneumatic, Hydraulic

Product Features

This product features a well-designed structure, reliable sealing, excellent performance, and an attractive appearance. Sealing is achieved through sealing rings around the valve disc, and it includes unique protection with wallow-tailed sinks and fixed sealing rings. Its double-direction flow design makes installation and operation more convenient. The materials and flange sizes can be customized based on actual operating conditions or customer requirements, ensuring versatility to meet various engineering needs.
