API 6D Lubricated Plug Valves, ASTM A216 WCB, 10 IN, CL600

Name: API 6D Lubricated Plug Valves, ASTM A216 WCB, 10 IN, CL600
SKU: KV-20250207-LPV-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The API 6D Lubricated Plug Valve, manufactured with a carbon steel ASTM A216 WCB body, is designed for high-performance applications. This 10-inch (DN250) valve is rated for Pressure Class 600 LB (PN100), providing excellent pressure handling capabilities. It features a pressure-balanced design to minimize the operating torque and ensure smooth operation. The valve is equipped with raised face (RF) ends for secure installation and sealing.

Request a quote

Detail Information

Product Name: Pressure Balanced Lubricated Plug Valve
Design Standard: API 6D
Body Material: ASTM A216 WCB
Size: 10 Inch, DN250
Pressure: Class 600 LB, PN100
End Connection: RF Flanged

Lubricated Plug Valve Manufacturer, Factory, and Supplier

We supply high-quality Lubricated Plug Valves at the best price for sale. The Flange-End Lubricated Plug Valve can be designed according to ANSI standards and customized based on the customer's specific requirements. These valves are widely used in industries such as petroleum, chemical, pharmaceutical, chemical fertilizer, and power generation. Lubricated Plug Valves, also known as Pressure Balance Lubricated Plug Valves, offer reliable sealing and efficient flow control.

Technical Specification

» Structure: Inverted pressure balance plug valve
» Nominal Diameter: NPS 1/2-16 Inch (DN15-DN400)
» Design Pressure: Class 150-1500 LB (PN20-PN260)
» Materials: ASTM A216 WCB, WCC, A217 WC6, WC9, C5, A352 LCB, LCC, A351 CF8, CF8M, CF3M, CF8C, CN3MN, CN7M, A890 4A(CD3MN), 5A(CE3MN), 6A(CD3MWCuN), ASTM B148 C95800, C95500
» Design Standard: API 6D, API 599
» Face to Face: ASME B16.10
» Connection End: RF, RTJ, BW
» Test Standard: API 598, ISO 5208
» Design Temperature: -46°C to +300°C
» Applicable Medium: Water, steam, oil, gas, etc.
» Operation: Lever, worm gear, electric, pneumatic
» Applications: Petrochemical, chemical, natural gas, LPG, gas, HVAC, food, and pharmaceuticals
» Additional Functions
Function 1: Optional bore pattern: Venturi, Regular, Short, Standard
Function 2: Metal to metal seated design
Function 3: Injection grease sealed design (for stem and seats)
Function 4: Fire safe design

Product Characteristics

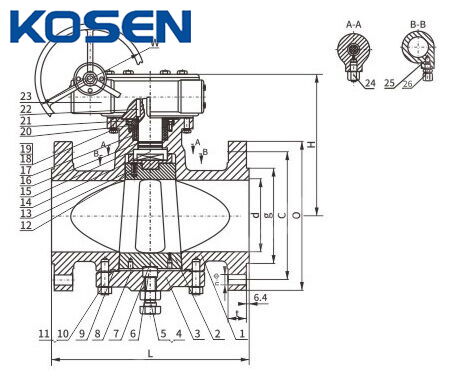

The Inverted Pressure Balance Plug Valve design ensures balanced operation under pressure from different directions. It utilizes specialized sealing structures to effectively prevent fluid leakage when the valve is closed, providing enhanced reliability and safety.
