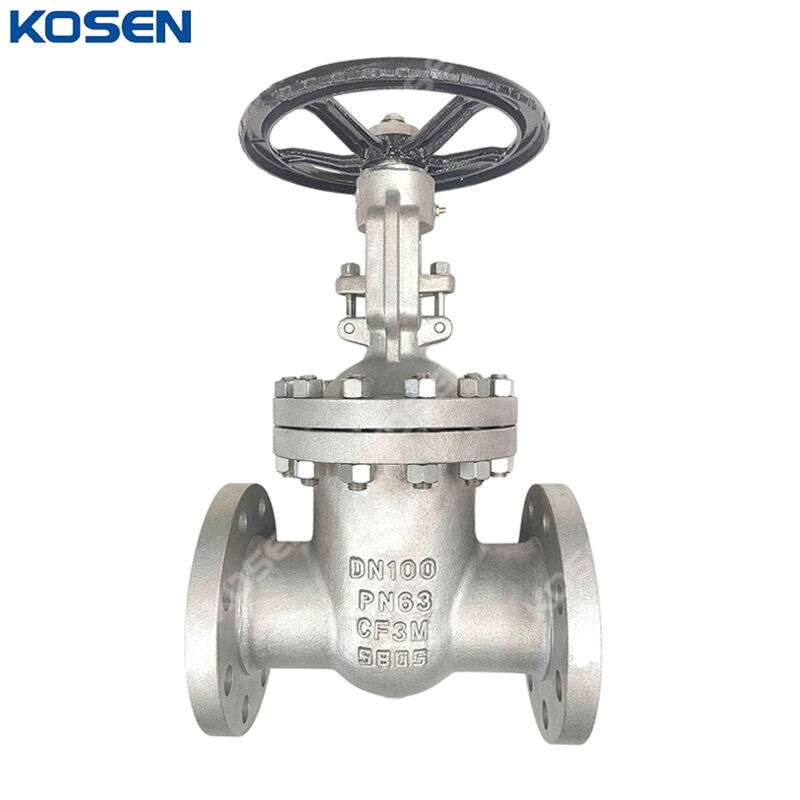

DIN 3352 F7 Gate Valve, EN 1.0619, DN100, PN40, BB, OS&Y, RF

Our China DIN 3352 F7 Gate Valve Plant offers high-quality wedge gate valves designed for reliable on-off control. These valves feature a carbon steel body made from EN 1.0619 material, ensuring durability and strength. With a diameter of DN100 (4 inches) and a pressure rating of PN40 (Class 300 LB), the bolted bonnet design provides easy maintenance and inspection. The outside screw and yoke (OS&Y) mechanism ensures smooth operation and precise control. The raised face (RF) flanged ends facilitate secure and leak-free connections.

Product Name: DIN 3352 F7 Gate Valve
Type: Wedge Gate Valve
Design Standard: DIN 3352 F7
Body Material: EN 1.0619
Size: DN100, 4 Inch
Pressure: PN40, Class 300 LB
End Connection: RF Flanged
Operation: Handwheel
Medium: Water, Oil, Gas, etc
Temperature Range: -29°C to 595°C

The Wedge Gate Valves are meticulously designed and manufactured to ensure a leakage rate of less than 100 ppm (parts per million) of volatile organic compounds (VOCs). Extensive baseline laboratory testing, including both static and cycle tests, has been conducted to establish the critical design parameters necessary for achieving low-emission sealing in the stem packing seal area and the bonnet gasket sealing area. An in-house testing procedure has been developed and is periodically performed to ensure that the standard product design and manufacturing criteria consistently result in the Wedge Gate Valve meeting a maximum of 100 ppm VOC leakage prior to shipment.

Technical Specification

» Type: Wedge Gate Valve
» Nominal Diameter: DN50-DN1000
» Design Pressure: PN6-PN40
» Body/Bonnet/Wedge: Cast Steel (EN 1.0619), Stainless Steel (EN 1.4308; EN 1.4408), Alloy Steel EN 1.7335 (WC6)
» Stem: X20Cr13 or EN 1.4021, Stainless Steel (EN 1.4308; EN 1.4408)
» Seat: 13Cr, 18Cr, Stellite
» End Connections: RF Flange, Groove Flange, BW
» Operation: Handwheel, Bevel Gear, Electric, Pneumatic
» Structural Formation: BB-BG-OS & Y
» Design Standard: DIN 3352
» Face-to-Face Dimension: According to EN 558-1 15 (DIN 3202 F5 series)
» Flange Ends: DIN 2543 to 2547, EN 1092-1, GOST 12815, GOST 12819
» Butt Welded End: EN 12627
» Test & Inspection: DIN 3230

Product Features

» Anti-Friction Ball Thrust Bearing: Reduces friction between mating parts to ensure smooth operation.
» Grub Screw: Secures the yoke nut in the bonnet.
» Grease Nipple: Supplies lubricant to the mating parts.
» OS&Y (Outside Stem and Yoke): Enhances accessibility and maintenance.
» Metal-Sealed Trim Options: Available in Trim #1, #5, #8, #10, and more.
» Optional Features: Locking Device, Stem Extension, Direct Mounting to ISO 5211
» Full Port: Ensures unrestricted flow and minimal pressure drop.
