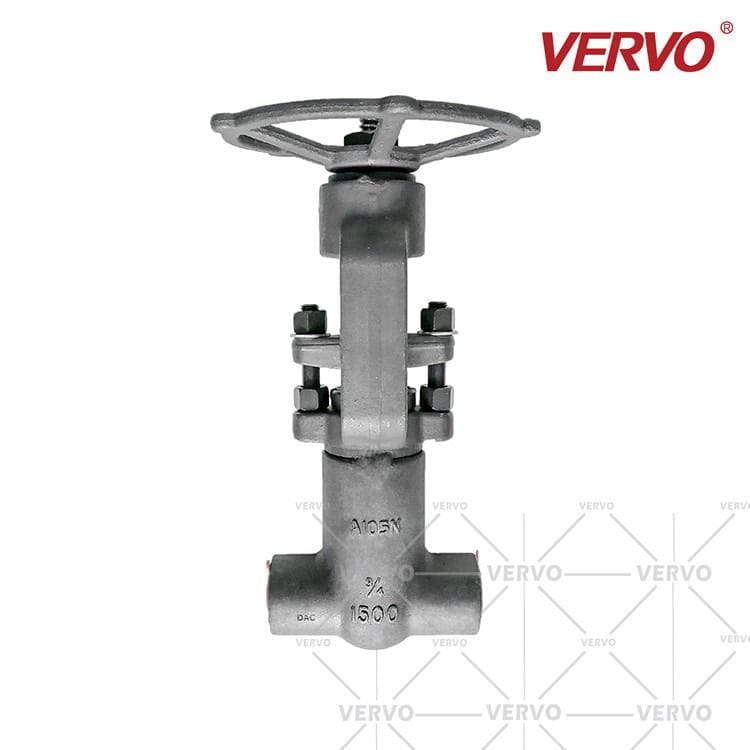

DIN 3352 Gate Valve, ASTM A105N, 3/4 Inch, 1500 LB, 5 Trim

Name: DIN 3352 Gate Valve, ASTM A105N, 3/4 Inch, 1500 LB, 5 Trim
SKU: VF-231212-FSGV-13
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Are you seeking a trusted supplier for DIN 3352 Forged Steel Gate Valves? Your search ends here! We provide top-notch valves designed in accordance with DIN 3352 standards, ensuring reliability and durability. Our valves, featuring a 3/4-inch size, Class 1500 LB rating, DN20, PN250 pressure class, and crafted from high-quality ASTM A105N, are tailored to meet your specific needs.

Request a quote

Detail Information

Standard: DIN 3352
Material: ASTM A105N
Trim: NO.5
Size: 3/4 Inch
Class Rate: 1500 LB
Ends: NPT, NPT*SW, SW
Operating: Hand Wheel
Wall Thickness: API 602, ASME B16.34.
Face-to-face Dimensions for Flanged Valves: ASME B16.10.
Flange Design: ASME B16.5.
Socket Weld Ends to ASME B16.11.
Screwed Ends (NPT) to ASME B1.20.1.
Butt Welding Ends: ASME B16.25.
Pressure Testing: API 598.

More Body Materials:
ASTM A105, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A350 LF2, ASTM A182 F11, ASTM A182 F22, ASTM A182 F5, ASTM A182 F51, ASTM A182 F321.

Quality Assurance (QA):
Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures (ASME Section III manual and ISO 9001 manual).
