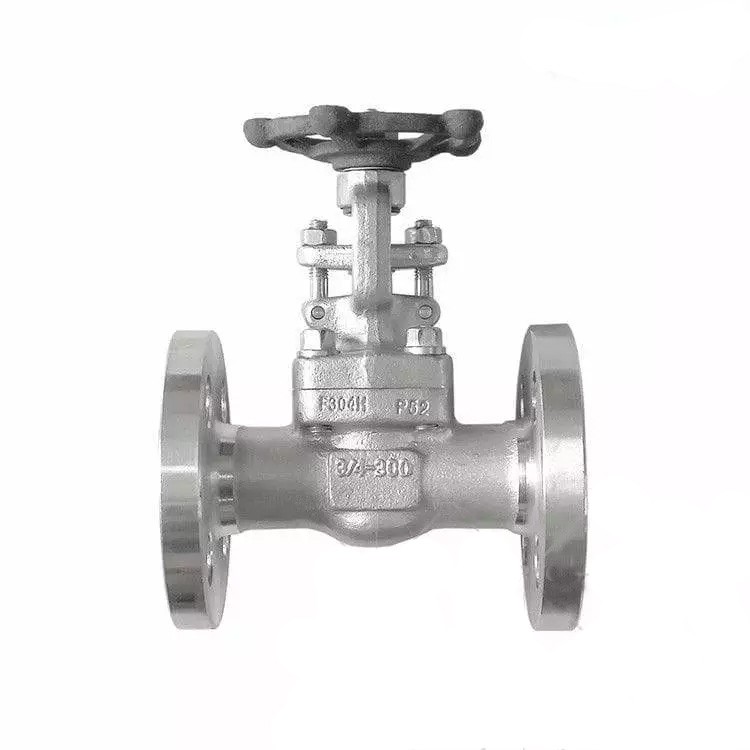

Cryogenic Gate Valve, API 602, ASTM A182 F304, 3/4 IN, CL150

This Cryogenic Gate Valve is designed for low-temperature applications involving LPG and LNG. Featuring an extended stem for safe operation at cryogenic conditions, it is manufactured to API 602 standards with a forged ASTM A182 F304 stainless steel body. With a 3/4 inch size and Class 150 LB pressure rating, this valve ensures reliable shutoff and durability in cold service environments, making it ideal for cryogenic processing, storage, and transport systems.

Product Name: Cryogenic Gate Valve, Extended Stem
Design Standard: API 602
Body Material: ASTM A182 F304
Size: 3/4 Inch, DN20
Pressure: Class 150 LB, PN20
End Connection: RF Flanged
Operation: Handwheel
Medium: LPG, LNG, etc
Temperature Range: Down to -196°C

Cryogenic Gate Valves are engineered and manufactured in strict compliance with international standards such as API 602, ASME B16.34, and DIN 3202 or their equivalents. These valves feature a compact yet exceptionally sturdy design suitable for high-pressure and high-temperature applications, including cryogenic service.
An optional solid CoCr alloy wedge provides low friction and extended service life. Packing rings are pre-compressed to 4000 psi to ensure a high-integrity seal. In welded bonnet designs, the bonnet is threaded and torqued to a specific engineered value, with the body-bonnet joint strength-welded for double protection against leakage.
The fully guided wedge reduces wear on seating surfaces. Optional features include double packing, leak-off connections, live-loading, and a packing blowout for easy removal of worn packing.

Technical Specification

» Size Range: 1/2-2 Inch (Forged Items)
» Design Pressure: Class 150-1500 LB (PN10-PN250)
» Materials: Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel, and other special alloys
» Trim Materials: 13%Cr, ASTM A182 F11, F22, SS 304, SS 304L, SS 316, SS 316L, and other specials
» End Connections: SW (Socket Weld), BW (Butt Weld), RF (Raised Face) Flange
» Design & Manufacture Standards: ASME B16.34, API 602
» Face-to-Face (End-to-End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Butt Weld End: ANSI B16.5
» Socket-Weld Ends: ASME B16.11
» Test & Inspection: API 598, API 6D

Product Features

» OS&Y design (Outside Screw & Yoke)
» Metal-seated (API Trim #1, #5, #8, #10, etc.)
» Optional locking device or stem extension
» Optional bonnet configurations: bolted or welded
» Optional direct mounting to ISO 5211 actuator standards
» Available in full bore or reduced port configurations
