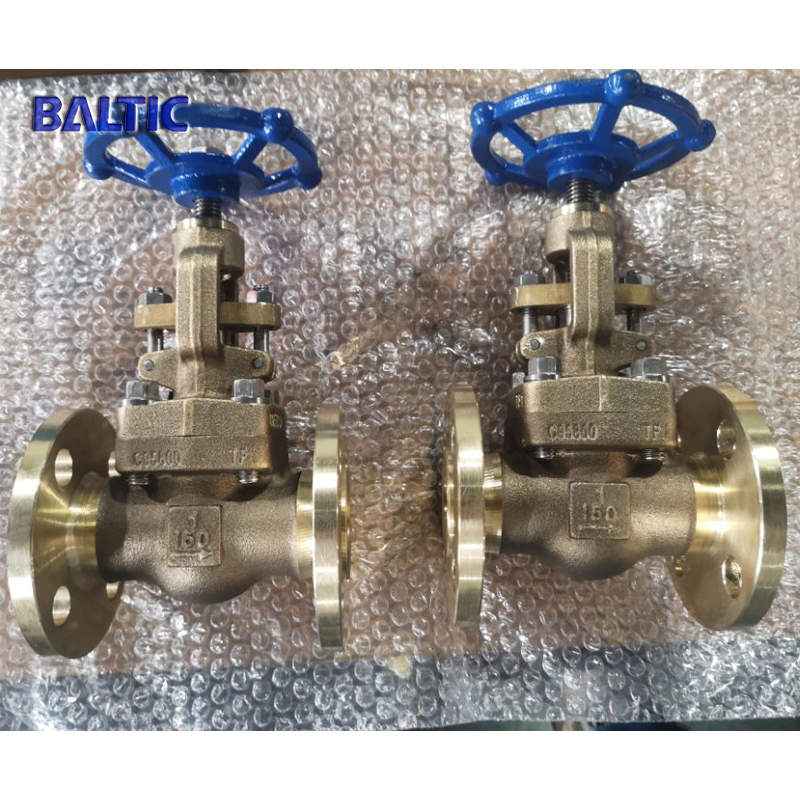

ASTM B148 C95800 Gate Valve, API 602, 1 Inch, CL150, RF Ends

The ASTM B148 C95800 Gate Valve is a durable, high-performance valve made from aluminum bronze, designed for reliable operation in various industrial applications. Conforming to API 602 standards, it features a 1-inch (DN25) size, 150 LB (PN20) pressure class, and RF flanged ends for secure connections. This valve is manually operated with a handwheel, ensuring precise control over flow.

Product Name: Aluminum Bronze Gate Valve
Design Standard: API 602
Body Material: ASTM B148 C95800
Size: 1 Inch, DN25
Pressure: Class 150 LB, PN20
End Connection: RF Flanged
Operation: Handwheel

KOSEN aluminum bronze gate valves are widely used in marine engineering, environmental protection projects, and applications involving oxidative medium corrosion. Designed for demanding environments with high corrosion resistance requirements, these valves perform exceptionally well in marine and offshore conditions. Their superior durability makes them ideal for ship hardware, seawater pipelines, and other applications requiring long-term resistance to corrosion.
As a shut-off valve, the aluminum bronze gate valve provides a straight-through flow path when fully opened, minimizing pressure loss and ensuring efficient medium flow.

Technical Specification

» Size Range: 1/2-2 Inch (DN15-DN50) (for Forged Items)
» Design Pressure: Class 150-900 LB (PN10-PN160)
» Materials: Aluminum Bronze ASTM B148 C95400, C95500, C95800, ASTM B150 C63000, C63200
» End Connections: FNPT, RF, Integral Flanged Ends
» Design and Manufacture: ASME B16.34, API 602
» Face to Face (End to End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Test and Inspection: API 598, API 6D
» Threaded Ends: ASME B1.20.1
» Temperature Range: -29°C to 260°C
» Medium: Sea Water, Offshore and Marine

Product Features

» OS&Y (Outside Stem and Yoke)
» Optional Locking Device or Stem Extension
» Optional Bolted Bonnet
» Optional Direct Mounting to ISO 5211
» Full Bore or Reduced Port
» Metal-Sealed
