ASTM A351 CD4MCU Wafer Check Valve, API 594, 8 Inch, 150 LB

Name: ASTM A351 CD4MCU Wafer Check Valve, API 594, 8 Inch, 150 LB
SKU: KV-20250213-WCV-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The ASTM A351 CD4MCU Wafer Check Valve, supplied in accordance with API 594 standards, features a duplex stainless steel body for superior corrosion resistance and strength. With an 8-inch size (DN200) and a pressure rating of Class 150 LB (PN20), this valve has lug-type ends for easy installation. Its dual plate design ensures reliable flow control and minimal pressure drop, making it ideal for various industrial applications.

Request a quote

Detail Information

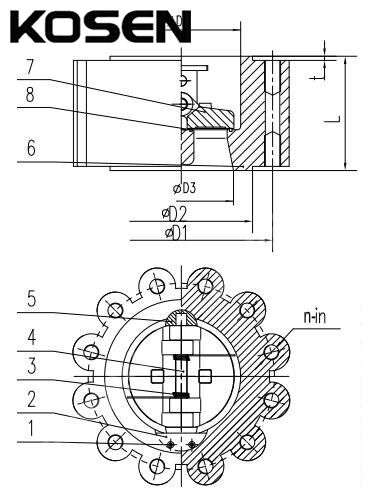

Product Name: Lug Type Dual Plate Check Valve
Type: Wafer Check Valve
Design Standard: API 594
Body Material: ASTM A351 CD4MCU
Size: 8 Inch, DN200
Pressure: Class 150 LB, PN20
End Connection: Wafer

We specialize in the manufacturing of wafer check valves, featuring a center vertical pin shaft design. When the valve is open, the resultant force of the fluid acts on the center of the sealing face of the disc, while the counter spring support force acts on the center of the disc surface. This design ensures that the root of the disc opens first, preventing wear on the sealing surface, an issue common in traditional valves, and extending the longevity of the valve's seal.
The wafer check valve operates automatically, opening and closing based on the flow of the medium itself. It is primarily used to prevent the reverse flow of the medium, offering reliable, self-regulating operation for various flow control applications.

Technical Specifications

» Nominal Diameter: NPS 2–60 Inch (DN50–DN1500)
» Design Pressure: Class 150–2500 (PN10–PN420)
» Materials: ASTM A216 WCB, WCC, A217 WC6, WC9, C5, C12A, A352 LCB, LCC, A351 CF8, CF8M, CF3M, CF8C
» End Connections: Wafer, Lug, Clamp, Flanged
» Design and Manufacture Standards: API 594, API 6D, JB/T 8937
» Face-to-Face (End-to-End): API 594, API 6D, JB/T 8937, DIN 3202
» Flanged Connection Standards: ANSI B16.5, DIN 2543–48, JB/T 9112–24
» Butt Welded End Standards: ANSI B16.25
» Test and Inspection Standards: API 598, DIN 3230, JB/T 9092
» Temperature Range: -29°C to 595°C
» Medium: Water, gas, oil, etc.

Product Features

» Light and Compact: Designed for easy installation with a space-saving structure.
» Zero Leakage Sealing Design with Soft Seated: Ensures a leak-tight seal to prevent any backflow.
» Non-Slam Design: Minimizes noise and shock during operation, enhancing longevity and performance.
» Bubble Tight Close-Off: Guarantees complete shut-off with no leakage, even under high-pressure conditions.
» Discs Open 85°: Maximizes flow efficiency and reduces pressure drop during operation.
