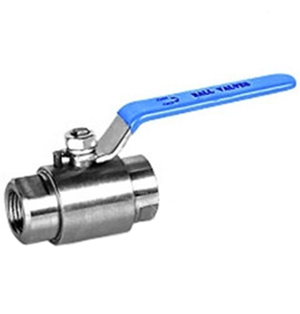

ASTM A182 F304 Floating Ball Valve, API 6D, 1/2 Inch, CL300

The ASTM A182 F304 Floating Ball Valve, manufactured in compliance with API 6D standards, features a 2-piece forged stainless steel body for superior strength and durability. With a 1/2-inch (DN15) size and a pressure rating of Class 300 LB (PN50), this valve is designed for high-performance fluid control in demanding applications. It comes with RF flanged ends for secure connections and is equipped with a lever for easy manual operation.

Product Name: ASTM A182 F304 Floating Ball Valve, 2 Piece
Design Standard: API 6D
Body Material: ASTM A182 F304
Size: 1/2 Inch, DN15
Pressure: Class 300 LB, PN50
End Connection: RF Flanged
Operation: Lever

Forged Floating Ball Valves are engineered with a robust design, supporting the ball with two PTFE seats—one on the upstream and one on the downstream side. The upstream pressure pushes the ball, compressing the downstream seat to fully shut off fluid flow. These valves are constructed with high-quality castings and feature a fire-safe design, certified to BS 6755, API 607, and API 6FA, ensuring safety in hazardous environments. They meet all applicable ASME standards, offering superior reliability and performance.
Floating Ball Valves are available in various body types, including One-Piece Uni-body, Two-Piece Split Body, and Three-Piece Bolted Body. Designed and manufactured in accordance with the latest international standards, including API 6D, ASME B16.34, and BS 5351, these valves feature fire-safe, anti-static, and blow-out prevention capabilities, providing peace of mind in demanding applications.

Technical Specifications

» Size Range: NPS 1/2-10 Inch (DN15-DN250)
» Design Pressure: Class 150-1500 LB (PN10-PN250)
» Materials: Forged Carbon Steel, Stainless Steel, Duplex Steel, or other special materials (ASTM A105N, A350 LF2, A182 F11, F22, F304, F304L, F316, F316L)
» Trim Materials: 13%Cr, SS 304, SS 304L, SS 316, SS 316L, and other special materials
» Seat Materials: Nylon, RPTFE, PEEK
» End Connections: RF and RTJ flange, welded
» Operation: Handle, worm gear, electric, pneumatic
» Design and Manufacture: API 6D, BS 5351, ASME B16.34
» Face-to-Face (End-to-End): ASME B16.10
» Flanged Connection: ASME B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded End: ASME B16.25
» Fire Safety: API 607, API 6A
» Temperature Range: -46°C to 120°C

Product Features

» Low Operating Torque
» Emergency Sealing Mechanism
» Fireproof Structural Design
» Anti-static Construction
» Reliable Seat Sealing System
» Special Automatic Pressure Relief Structure for Upstream Flow
» Blow-out Proof Stem with Flyout Prevention Design
» Excellent Corrosion Resistance and Sulfide Stress Resistance
» Optional Locking Mechanism or Stem Extension
» ISO 5211 Direct Mounting Compatibility (Optional)
» Full Port or Reduced Bore Options
