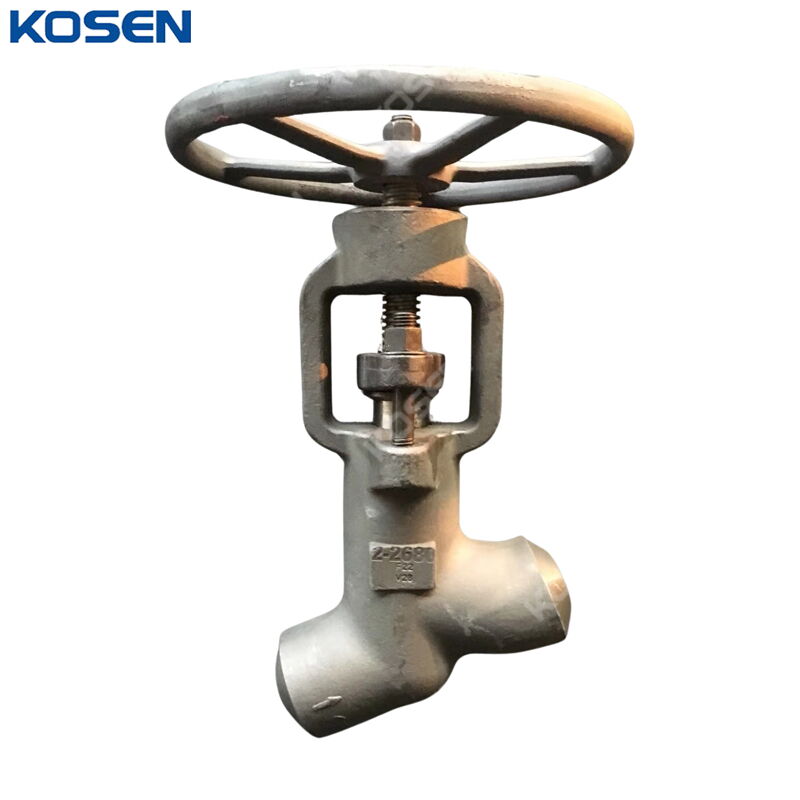

ASTM A182 F22 Y Globe Valve, API 602, CL2500 LB, PSB, Custom

The China Y-Pattern Globe Valve Factory specializes in manufacturing high-quality globe valves that adhere to API 602 standards and are made from ASTM A182 F22 material. These valves are available in custom sizes and feature a Pressure Class 2500 LB (PN420) rating, ensuring they can handle extremely high-pressure applications. They come with a pressure seal bonnet and butt weld ends, providing a secure and reliable connection. Operated manually, these valves are designed for precision control and are ideal for demanding industrial environments.

Product Name: Y-Pattern Globe Valve, Pressure Seal Bonnet
Design Standard: API 602
Body Material: ASTM A182 F22
Size: Customized
Pressure: Class 2500 LB, PN420
End Connection: BW
Operation: Manual
Medium: Water, Oil, Gas, etc
Temperature Range: -29°C to 595°C

Pressure Seal Globe Valves are precisely engineered and manufactured to meet International Standards API 602, ASME B16.34, DIN 3202, or their equivalents. These valves feature a compact yet highly robust design suitable for demanding high-pressure and high-temperature applications.
An optional solid CoCr alloy wedge provides low friction and extended service life. Packing rings are pre-compressed to 4000 psi, ensuring a high-integrity seal. For welded bonnet valves, the bonnet is threaded and tightened to a specified engineered torque value, while the body-bonnet joint is strength-welded, offering double protection against leakage.
The fully guided wedge design reduces wear on seating surfaces, enhancing valve durability. Optional features include double packing, leak-off connections, live-loading, and packing blowout protection for easy removal and replacement of packing materials.

Technical Specification

» Size Range: 1/2-2 Inch (Forged Items)
» Temperature Range: -29°C to 595°C
» Design Pressure: Class 900-2500 LB (PN160-PN420)
» Materials: Forged Carbon Steel, Forged Alloy Steel, Forged Stainless Steel, Forged Duplex & Super Duplex Steel
» Trim Materials: 13%Cr, ASTM A182 F11, F22, SS 304, SS 304L, SS 316, SS 316L, and other special alloys
» Ends Connections: SW (Socket Weld), BW (Butt Weld), RTJ Flange
» Design & Manufacture Standards: ASME B16.34, API 602
» Face-to-Face (End-to-End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Test & Inspection: API 598, API 6D
» Butt Weld End: ANSI B16.5
» Socket-Weld Ends: ASME B16.11

Product Features

» Forged steel materials undergo fine processing, offering excellent corrosion resistance and suitability for various corrosive media, which extends valve service life.
» Forged steel globe valves feature a compact design with smaller volume and reduced space requirements, making installation and use easier, especially in confined spaces.
