ASTM A105N Ball Valve, ASME B16.34, 3/4 Inch, 800 LB, Lever

Product Name: Forged Steel Ball Valve, 3-piece Body
Design Standard: ASME B16.34
Body Material: ASTM A105N
Size: 3/4 Inch, DN20
Pressure: Class 800 LB, PN130
End Connection: SW End
Operation: Lever

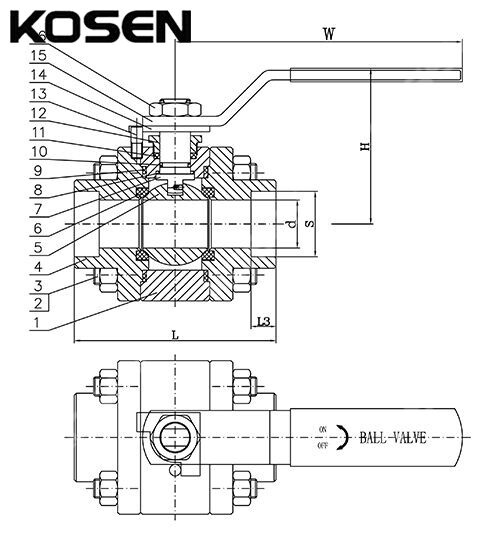

KOSEN Forged Steel Ball Valves are available in Two-Piece Split Body and Three-Piece Bolted Body types. The forged material ensures sufficient rigidity and strength under the maximum rated operating pressure, without the inherent flaws found in cast valves. The valve's separate body features adequate wall thickness, and the use of high-strength tie bolts makes maintenance easier and ensures the valve can withstand the stress from the pipeline. The internal components are carefully designed and selected to ensure reliability under various working conditions.

Technical Specification

Size Range: 1/2-2 Inch for Forged Items
Temperature Range: -29°C to +150°C
Design Pressure: Class 150-1500 LB (PN10-PN250)
Materials: Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel and Other Materials
Trim Materials: 13% Cr, SS 304, SS 304L, SS 316, SS 316L and other special materials
Seat Materials: PTFE, RPTFE, PEEK
End Connections: SW, FNPT, BW
Design and Manufacture: ASME B16.34, API 602
Face to Face (End to End): ANSI B16.10
Flanged Connection: ANSI B16.5
Test and Inspection: API 598, API 6D
Butt Welded End: ANSI B16.5
Threaded Ends: ASME B1.20.1
Socket-Weld Ends: ASME B16.11

Product Features

KOSEN Forged Steel Floating Ball Valves are available in One-Piece Uni-body, Two-Piece Split Body, and Three-Piece Bolted Body types. These valves are designed and manufactured according to the latest international standards, including API 6D, ASME B16.34, BS 5351, or their equivalents. Standard features include Fire Safe, Anti-static, and Blow-out prevention for enhanced safety and reliability.
