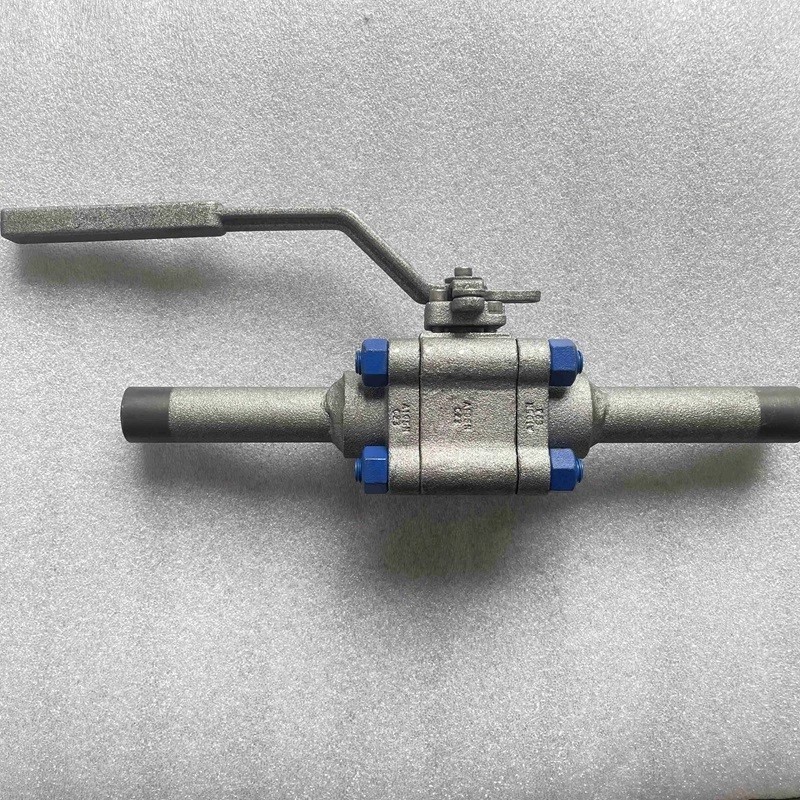

Three Piece Ball Valve, ASME B16.34, A105N, 1-1/2 IN, CL800

Name: Three Piece Ball Valve, ASME B16.34, A105N, 1-1/2 IN, CL800
SKU: KV-20250214-FSBV-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The Three-Piece Ball Valve is built for high-performance flow control, featuring a forged carbon steel ASTM A105N body that meets ASME B16.34 standards. This valve is available in a 1-1/2-inch, DN40 size with a Class 800 LB, PN130 rating. It is equipped with FNPT ends for secure threaded connections and operates via a wormgear mechanism for precise manual control. This valve ensures durability, reliable sealing, and smooth operation under high-pressure conditions.

Request a quote

Detail Information

Product Name: 3 Piece Forged Ball Valve
Design Standard: ASME B16.34
Body Material: ASTM A105N
Size: 1-1/2 Inch, DN40
Pressure: Class 800 LB, PN130
End Connection: FNPT
Operation: Wormgear

Forged Steel Ball Valves are available in two types: Two-Piece Split Body and Three-Piece Bolted Body. The forged material ensures superior rigidity and strength, capable of handling maximum rated operating pressures without the inherent flaws commonly found in cast valves. The valve bodies feature sufficient wall thickness, and the use of high-strength tie bolts allows for easy maintenance and ensures the valve can withstand the stresses imposed by the pipeline.
The internal components of the valve are meticulously designed and selected to guarantee reliable performance across a wide range of operating conditions, making Forged Steel Ball Valves an ideal choice for demanding applications.

Technical Specification

» Size Range: 1/2-2 Inch (DN15-DN50) (for Forged Items)
» Design Pressure: Class 150-1500 LB (PN10-PN250)
» Materials:
Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel, etc
ASTM A105N, A350 LF2, A182 F11, F22, F304, F304L, F316, F316L
» Trim Materials: 13%Cr, ASTM A182 F11, F22, SS 304, SS 304L, SS 316, SS 316L, and other specials
» Seat Materials: PTFE, RPTFE, PEEK
» Ends Connections: SW, FNPT, BW
» Design and Manufacture: ASME B16.34
» Face to Face (End to End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded Ends: ANSI B16.5
» Threaded Ends: ASME B1.20.1
» Socket-Weld Ends: ASME B16.11
» Medium: Water, Gas, Oil, etc.
» Temperature Range: -29°C to 150°C

Product Features

Forged Steel Floating Ball Valves are available in One-Piece Uni-body, Two-Piece Split Body, and Three-Piece Bolted Body designs. These valves are engineered and manufactured to meet the latest international standards, including API 6D, ASME B16.34, and BS 5351, or their equivalents. Standard features include fire-safe construction, anti-static capabilities, and blow-out prevention, ensuring enhanced safety, reliability, and durability in various applications.
