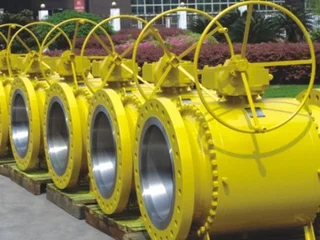

3PC Trunnion Ball Valve, ASTM A216 WCB, 16 * 12 IN, 600 LB

Product Name: 3PC Trunnion Mounted Ball Valve
Features: Three Piece Body, Reduce Bore
Design Standard: API 6D, BS 5351
Body Material: Carbon Steel ASTM A216 WCB
Size: 16 x 12 Inch, DN400 * DN300
Pressure: Class 600 LB, PN100
End Connection: RF Flanged
Operation: Gear Box

Trunnion Mounted Ball Valves are designed to provide smooth operation under high line pressures. Featuring carefully aligned bearings for low-torque operation, these valves offer a robust solution with minimal effort required to operate. The ball is fixed in position but free to rotate, ensuring efficient flow control. KOSEN's Casted Trunnion Ball Valves are crafted with high-quality castings and feature a fire-safe design, certified in accordance with BS 6755, API 607, and API 6FA. These valves meet all applicable ASME standards and are available in both two-piece split body and three-piece bolted body designs. Manufactured to the latest international standards, including API 6D, ASME B16.34, and BS 5351, these valves are equipped with standard fire-safe, anti-static, and blow-out proof stem features.

Technical Specifications

Size Range: NPS 2-48 Inch (DN50-DN1200)
Design Pressure: Class 150-2500 LB (PN10-PN420)
Materials: Cast Carbon Steel, Stainless Steel, Duplex Steel, ASTM A216 WCB, WCC, A352 LCB, LCC, A351 CF8, CF8M, CF3, CF3M
Trim Materials: 13% Cr, SS 304, SS 304L, SS 316, SS 316L
Seat Materials: RPTFE, DEVLON, PEEK
End Connections: Flanged RF, RTJ, Welded
Operation: Handle, Worm Gear, Electric, Pneumatic
Temperature Range: -46°C to 120°C
Medium: Water, Gas, Oil, etc.

Design and Manufacturing Standards

Design and Manufacture: API 6D, BS 5351, ASME B16.34
Face-to-Face (End-to-End): ASME B16.10
Flanged Connections: ASME B16.5, ASME B16.47
Test and Inspection: API 598, API 6D
Butt Welded End: ASME B16.25
Fire Safety: API 607, API 6A

Product Features

Double Block and Bleed (DBB)
Low Operating Torque
Emergency Sealing Device
Fireproof Structure Design
Anti-static Structure
Reliable Seat Sealing Structure
Single Sealing with Automatic Pressure Relief in Middle Cavity
Double Sealing (Double Piston Effect)
Safety Relief Device
Automatic Pressure Relief towards Upstream
Blow-out Proof Stem
Corrosion Resistance and Sulfide Stress Resistance
Optional Locking Device or Stem Extension
Optional Direct Mounting to ISO 5211
Full Port or Reduced Bore Options
