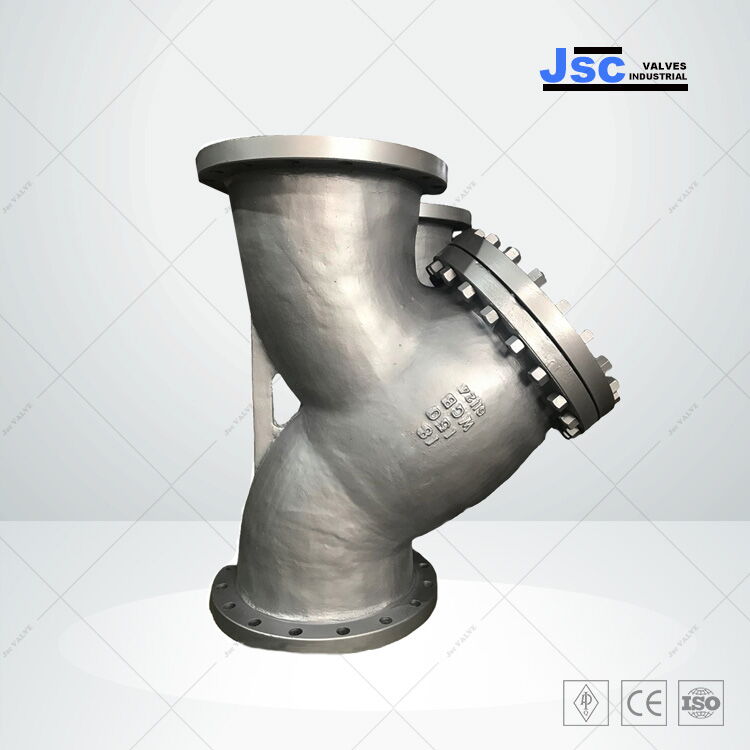

ASME B16.34 Y Strainer, ASTM A216 WCB, 10 IN, CL 150, BW End

Discover our ASME B16.34 compliant Y Strainer, manufactured in our state-of-the-art plant in China. Constructed from ASTM A216 WCB, this 10-inch strainer is engineered for Class 150 LB applications. Featuring a durable SS 304 Perforated Screen, it effectively filters debris. Its double-layer net structure enhances filtration efficiency. With butt-welded ends, installation is secure and hassle-free. Ideal for industries requiring reliable filtration in demanding environments.

Cast Steel Y Strainer

Body material: ASTM A216 WCB
Design: ASME B16.34
Nominal diameter: 10 Inch (DN250)
Nominal class: Class 150 LB (PN20)
End connection: Butt-welded (BW)
Screen mesh: SS 304
Face to face: MFR
Test and inspection: API 598
Mode of operation: /

The Y-type strainer is designed for use in water, oil, and gas pipelines as well as various equipment. Its primary function is to remove impurities from the medium flowing through the pipe, thereby protecting pressure reducing valves, pressure relief valves, constant water level valves, and water pumps, ensuring their normal operation. It is recommended to install the Y-type strainer at the inlet.

Filter Screens:
Water: 10-30 mesh/cm²
Air: 40-100 mesh/cm²
Oil: 60-200 mesh/cm²

The Y-type strainer should be installed at the front end of each matching valve in the water inlet pipeline. As the medium in the pipeline enters the filter, it passes through the filter screen before entering the connected valve. This process ensures that impurities are trapped in the filter barrel, preventing mechanical debris from damaging the sealing rings of various valves.

Cast Alloy Steel Y Strainer-Feature

1. The Y-type strainer screen features a stainless steel double-layer net structure, making it both firm and durable. It boasts an advanced design with low flow resistance and convenient sewage discharge.

2. Filter Screen Mesh Sizes (Adjustable to User Needs):
Water Supply Network: 18-30 mesh
Ventilation Network: 40-100 mesh
Oil Network: 100-480 mesh

3. A blow-down plug at the drain port allows for clean-out without removing the screen or interrupting the process flow, available upon request.

4. Additional Features: SS 304 perforated screens are standard. Drain/Blow-off connection is furnished with a plug as standard.

Cast Alloy Steel Y Strainer-Specifications and Materials

Size Range: 1/2 - 24 Inch, DN15 - DN600
Pressure Range: Class 150 LB - 2500 LB, PN20 – PN420
Design Standard: ASME B16.34
Face to Face: ASME B16.10
Flange Ends: ASME B16.5
Butt-weld Ends: ASME B16.25
Threaded Ends: ASME B1.20.1
Socket-weld Ends: ASME B16.11
Valves Marking Conform: MSS SP-25
Inspection and Testing Conform: API 598
Body material: ASTM A216 WCB, ASTM A352 LCB, Alloy Steel ASTM A217 WC6, WC9, C12A, Stainless Steel ASTM A351 CF8 CF8M, CF3, CF3M, Duplex A890 4A, 5A, Special Alloy, Monel, Bronze C95800, Alloy 20.
