Ductile Iron Swing Check Valves, ASTM A536 65-45-12, 2-12 IN

  • Feb 18, 2025
On this page

Swing Check Valve, ASTM A536 Grade 65-45-12, 2 Inch - 12 Inch, 300 PSI.

Product Item: Rubber Disc Swing Check Valve
Body Material: ASTM A536 Grade 65-45-12
Size Range: 2 Inch - 12 Inch, DN50-DN300
Coating: Fusion Bonded Epoxy Coating (ANSI/AWWA C550)
Connection Ends: Flanged, ASME B16.1 Class 125 LB
Working Pressure: 300 PSI (Standard), 200 PSI and 250 PSI available upon request
Temperature Range: 0°C to 80°C

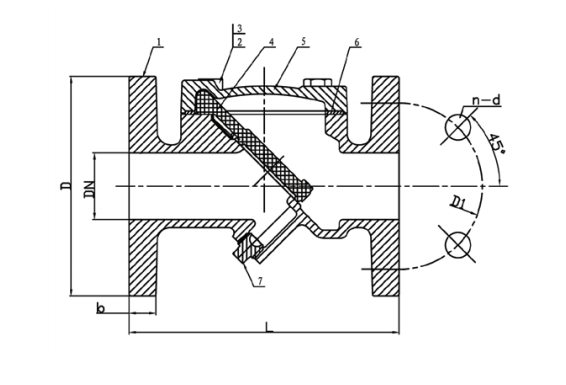

Drawing for Swing Check Valve

MATERIAL SPECIFICATION

Part No. Part Standard Specification Options
1 Valve Body ASTM A536, 65-45-12
2 Bolt Carbon Steel Zinc Plated AISI 304, AISI 316
3 Washer Carbon Steel Zinc Plated AISI 304, AISI 316
4 Disc Carbon Steel + EPDM Carbon Steel + NBR
5 Bonnet ASTM A536, 65-45-12
6 Bonnet Gasket EPDM
7 Plug Malleable Iron Galvanized Bronze ASTM B584

Note: For special material requests other than the standard specification, please indicate clearly on the inquiry or order list.





DIMENSIONS

DN Dimensions (mm)
Inch mm L D D1 b

n-Φd

2"

 50 203 152 120.5 16 4-Φ19.1

2.5"

 65 216 178 139.5 17.5 4-Φ19.1

3"

 80 241 191 152.5 19 4-Φ19.1

4"

 100 292 229 190.5 24 8-Φ19.1

5"

 125 330 254 216 26 8-Φ22.2

6"

150

 356 279

241.5

 25.5 8-Φ22.2

8"

 200 495 343 298.5 28.5 8-Φ22.2

10"

 250 622 406 362 30.5 12-Φ25.4

12"

 300 698 483 432 32 12-Φ25.4
