Vertical Inline Pump, EN 733/DIN 24255, 4–400 m3/h, 2–150 m

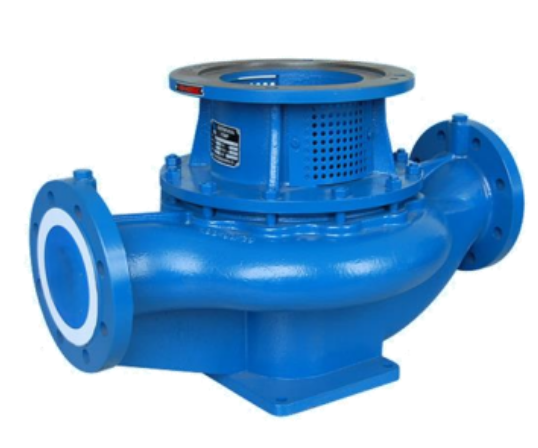

Product Item: Vertical Inline Pump
Structure: Vertical, Single-Stage, Single-Suction, Volute, Casing, In-Line Design
Design Standard: BS EN 733 / DIN 24255
Size: 40–200 mm (Inlet)
Head Range: 2–150 m
Flow Rate: 4–400 m³/h
Materials:
Casing: Cast Iron, Ductile Iron
Impeller: Bronze, Cast Steel, Stainless Steel
Shaft: ASTM 1045, ASTM 304, ASTM 316, ASTM 420 (Optional)
Working Pressure: 1.6 MPa (Standard)
Flange Standard: DIN 2501 / ANSI B16.5
Operating Temperature: -10°C to 105°C

Features

• Vertical inline pumps feature a vertical, close-coupled design for space-saving installation, meeting the needs of users in various cold and hot water circulation applications, including civil and general industrial use.
• They are driven by an IEC standard motor and require minimal installation space.

Applications

• Heating, Ventilation & Air Conditioning (HVAC)
• Fire Protection & Firefighting
• Water Circulation & Liquid Transfer
• Irrigation Systems
• Cooling & Booster Services
