Product Name: Extended Stem Plug Valve, Soft Sealing, Sleeve Type
Design Standard: API 599
Body Material: ASTM A890 4A
Size: 1-1/2 Inch, DN40
Pressure: Class 150 LB, PN20
End Connection: RF
The unique 360-degree metal lip protection fixed card ensures there are no cavities for medium accumulation. The metal lip in the rotary plug provides a self-cleaning effect, making the valve suitable for sticky or scaling-prone conditions. It supports two-way flow and offers convenient installation. Sleeve-type soft-sealing plug valves are commonly used in corrosive, highly toxic, and hazardous media, as well as in environments where leakage is strictly prohibited or where the valve material must not contaminate the medium. The body material can be carbon steel, alloy steel, or stainless steel, depending on the working medium.
Technical Specification
» Nominal Diameter: NPS 1/2-14 Inch (DN15-DN350)
» Design Temperature: -46°C to 120°C
» Design Pressure: Class 150-900 LB (PN20-PN160)
» Materials: ASTM A216 WCB, WCC, A352 LCB, LCC, A351 CF8, CF8M, CF3M, CF8C, CN3MN, CN7M, A890 4A(CD3MN), 5A(CE3MN), 6A(CD3MWCuN), ASTM B148 C95800, C95500
» Design Standard: API 6D, API 599
» Face to Face: ASME B16.10
» Connection End: RF, RTJ, BW
» Test Standard: API 598, ISO 5208
» Operation: Lever, worm gear, electric, pneumatic
» Application: Petrochemical, chemical, natural gas, LPG, gas, HVAC, food, and pharmaceutical industries
» Function 1: Optional bore patterns: Venturi, Regular, Short, Standard
» Function 2: Metal-to-metal seated design
» Function 3: Injection grease-sealed design (for stem and seats)
» Function 4: Fire-safe
» Function 5: Integral seat ring

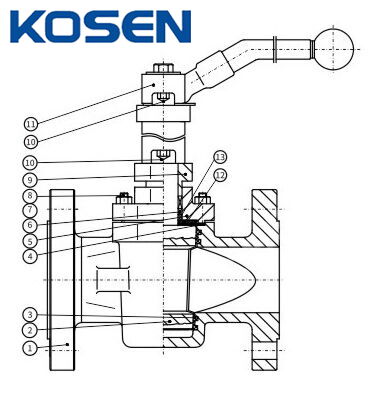

Material for Main Parts
NO. |
Part name |
Material |
||||
A216 WCB |
A351 CF8 |
A351 CF8M |
A351 CF3 |
A351 CF3M |
||
1 |
Body |
A216 WCB |
A351 CF8 |
A351 CF8M |
A351 CF3 |
A351 CF3M |
2 |
Sleeve |
PTFE/RPTFE |
||||
3 |
Plug |
A182 F6a |
A351 CF8 |
A351 CF8M |
A351 CF3 |
A351 CF3M |
4 |
Gasket |
Flexible graphite + stainless steel PTFE |
||||
5 |
Adjusting gasket |
A182 F6a |
A182 F304 |
A182 F316 |
A182 F304L |
A182 F316L |
6 |
Cover |
A216 WCB |
A351 CF8 |
A351 CF8 |
A351 CF3 |
A351 CF3M |
7 |
Bolt |
B7 |
B8 |
B8M |
B8M |
B8M |
8 |
Nut |
2H |
8 |
8M |
8M |
8M |
9 |
Gland |
A216 WCB |
A351 CF8 |
A351 CF8M |
A351 CF3 |
A351 CF3M |
10 |
Adjusting bolt |
A193 B7 |
A193 B8 |
A193 B8M |
A193 B8M |
A193 B8M |
11 |
Wrench |
ASTM A105/A216 WCB |
