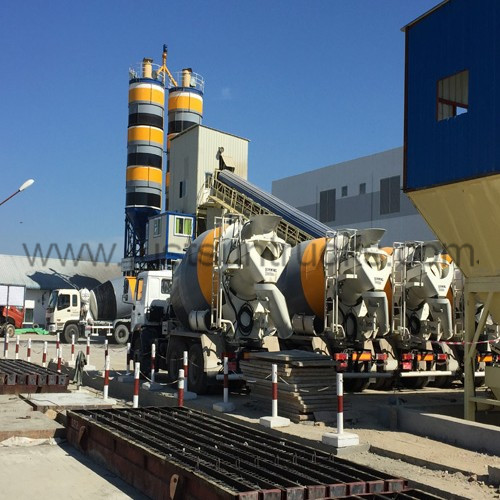

Cement Mixer Truck, 6 m3, 6x4, GVW 25 Ton, Payload 11770 kg, 336 HP
Product Name: HOWO 6x4 Mixer Truck
Model: ZZ5257GJBN3641W
Drum: 6 m³ drum
Cab: HW76
Engine: WD615.69 (336 HP, EURO II )
Transmission: HW15710
Drive axle: HC16
Front axle: HF9
Steering: ZF8118
Tires: 12.00R20
Detail Information
Model: ZZ5257GJBN3641W
Drum: 6 m³ drum
Cab: HW76
Engine: WD615.69 (336 HP, EURO II )
Transmission: HW15710
Drive axle: HC16
Front axle: HF9
Steering: ZF8118
Tires: 12.00R20
Detail Information
| Model | ZZ5257GJBN3641W | |
| Engine | Manufacturer: SINOTRUK Engine model: WD615.69, Euro II emission standard 4 stroke direct injection diesel engine 6 cylinder in-line with water cooling, turbo-charging & intercooling Maximum output: 336 hp (247 KW) at 2200 rpm according to DIN Maximum torque: 1350 Nm at 1100~1600 rpm Bore: 126 mm; Stroke: 130 mm; Displacement: 9.726 L; Compression ratio:17:1 Specific fuel consumption: 195 g/kWh; Engine oil filling quantity: 23 L Cooling system filling quantity (long-term filling): 40 L Thermostat opening temperature: 80℃ Twin cylinder air compressor Rigid fan |
|
| Clutch | Single- plate dry diaphragm spring clutch, diameter 430(B) mm, hydraulically operating with air assistance | |
| Transmission | Model HW15710, 10 forward and 2 reverse | |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |
| Front Axle | Steering axle with double T-cross section | |
| Rear Axles | Casted axle housing, central single reduction with planetary wheel reduction (hub reduction) and differential locks between wheels and axles Ratio: 5.73 Option: 4.80 |
|
| Chassis | Frame: U-profile parallel ladder type with section of 320×90×8 mm and reinforced frame, all cold riveted cross members Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: 12 semi-elliptic leaf springs with bogie spring and stabilizer Spare wheel carrier: with one spare wheel Fuel tank: with 400 L fuel tank with locking fuel cap |
|
| Steering | ZF8118 | |
| Brakes | Service brake: dual circuit compressed air brake Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake |
|
| Wheel & Types | Tires 12.00R20 | |
| Driver’s cab | Long cab, all steel forward control, 55o hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, single berth with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner and adjustable roof flap | |
| Electrics | Operating voltage: 24 V, negative grounded; Starter: 24 V, 5.4 KW Alternator: 28 V, 1540 W; Batteries: 2×12, 165 Ah Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp |
|
| Dimensions in mm | Wheel base Front wheel track Rear wheel track Front overhang Rear overhang Approach angle(o) Departure angle(o) Overall Dimension |
3625+1350 2022 1830 1500 2525 16 32 9000×2496×3886(mm) |
| Weight in kg | Permissible loading capacity Dead weight Gross vehicle weight Front axle loading capacity Rear axle loading capacity |
11770 13100 25000 7000 9000×2 |
| Performance | Maximum driving speed(km/h) Maximum gradeability (%) Minimum ground clearance(mm) Minimum turning circle(m) Fuel consumption(L/100km) |
75 34 314 20 32 |
| Body | Drum Volume Agitating Capacity Drum Slope Drum Rotating Speed Water Tank Volume Discharged remain ratio |
14.5m3 6 m3 13.5º 0-16 r/min 400 liters < 0.2% |
The manufacturer reserves the right of technical alteration/change for better improvement without prior notice.
