40 ft Skeleton Trailer, Tri-Axle, GVWR 46 Ton, Tare Weight 6000 kg

SPECIFICATIONS

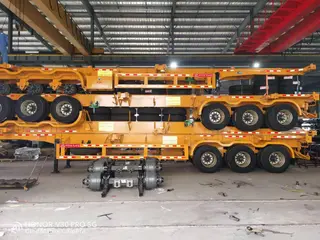

40FT Skeleton Semi-trailer with Tri-axle
The trailer is designed for stevedoring and transporting 1x40' or 2x20'  ISO Cargo Containers.

Dimension:
Length: 12420 mm
Width:  2480 mm
Height:  1540 mm (unload)
King Pin Location: 1200 mm from the front face of the front bolster
Axle spacer: 7500 mm + 1310 mm + 1310 mm
Fifth Wheel Height: 1240 mm

Weight:
Tare Weight : 6,000 kg±4%
Max. Payload: 40,000 kg
Gross Vehicle Weight: 46,000 kg
King Pin Distribution: 15,000 kg
Axle Group Distribution: 31,000kg

Steel Structure:
Material: High strength low alloy steel with 350 MPa yield strength is used for welded I-beam and fabricated parts.
Main Beams: 500 mm height x 146 mm width x 6 mm web welded I-section main beams.

OEM Parts Configuration:
King Pin: 2" welding kingpin. Brand: JOST.
Twist Locks: Four (4) fixed and Four (4) retractable ISO type twist locks.
Landing Gear: FUWA 19", 28 T. (right side operating).
Suspension: Mechanical suspension with 8 pieces of leaf springs, 4 pieces are full length.
Axles: 150x150 square axle with 13 tons capacity. Brand: Fuwa.
Rims: 8.25*22.5.  10 Holes ISO, 12 pieces + 1 piece spare.
Tires: 11R22.5 12 pieces + 1 piece spare, horn strip.
Brake System: Dual air brake system, without ABS brake system.
Brake Chamber: 30/30 type on rear two axles, 30 type on front axle.
Electrical System:24-volt lighting system with modular wiring harness.

Others:
Spare Tire & Carrier: One set per chassis, on left.
Side Guard: Standard.
Hook and Hole: 7 hooks and stick holes on each side of the platform.
Tool Box: One set with tools.
Painting: Blue.
Sign: No Chinese character showed,  "LONG VEHICLE" printed on the rear end.
