Duntop water flow indicator

Automatic fire fighting system chemical resistance water flow indicatoror liquid gauge water flow

The water flow indicator is a component part of automatic sprinkler fire extinguishing system, driving vanes through water flow in the sprinker pipe network. It actuates the micro switch to transfer water flow singal into electric signal, which connecting to the controller so as to start automatic fire alarm system. The indicator can be used for checking the operation of automatic sprinkler system and helping determine the area on fire , applicable to wet , dry and pre-acting system.

Compact structure, elegant apperance, sensitivity can be adjusted.

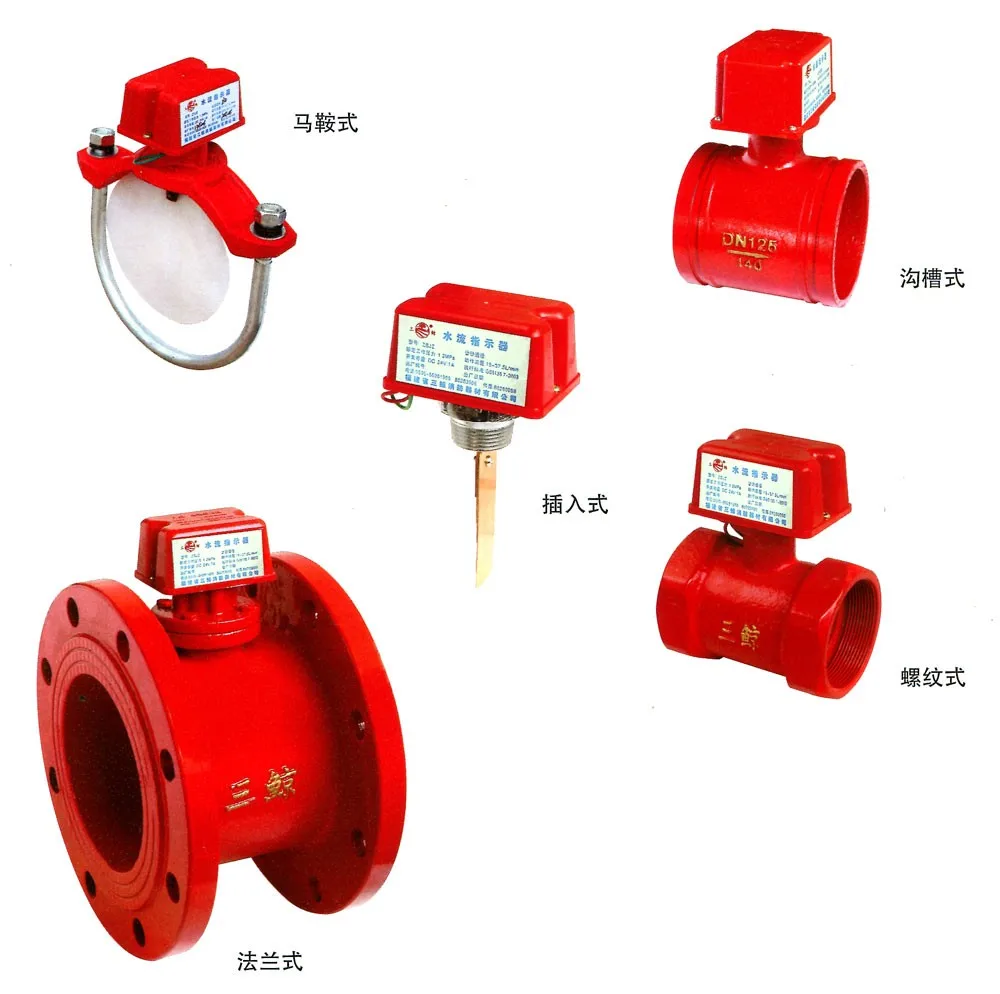

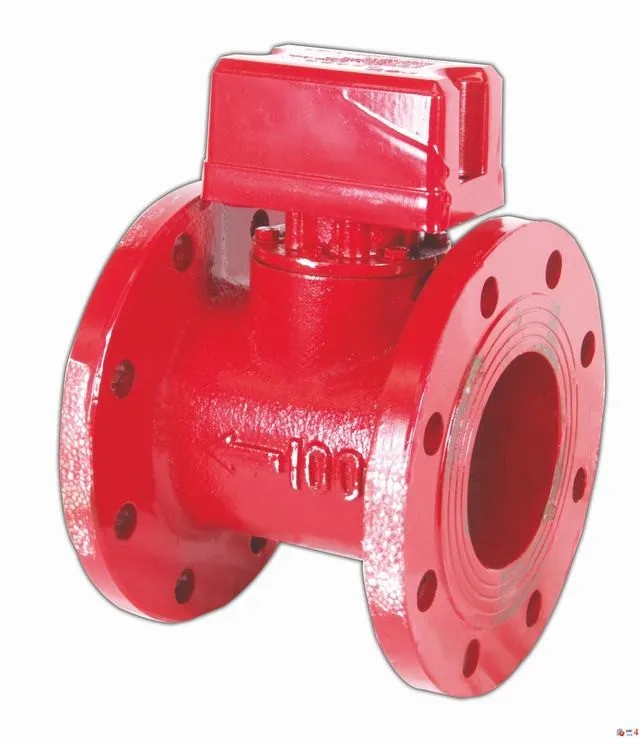

It adopt stainless steel area connceting, convenient to operate and reliable construction .connecting type inculde saddle , clamp, flanged, threadm welding ,etc. Please refer to attached figures.Among them , saddle type is especially suitable for reconstruction or expansion project, clamped type connceting piping projects,etc. It provides such convenient and quick in stallation that only two fasteninng bolts have to be screwed down.

During installation , make sure that the direction of media flow in the pipline is in conformity with the direction o farrow shown in the water flow indicator.
