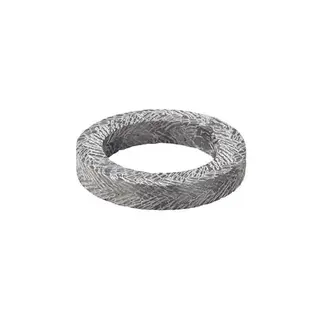

Non-Metallic Valve Packing, Graphite, PTFE Reinforced, CL900

Name: Non-Metallic Valve Packing, Graphite, PTFE Reinforced, CL900
SKU: MV-20250407-GP-02
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

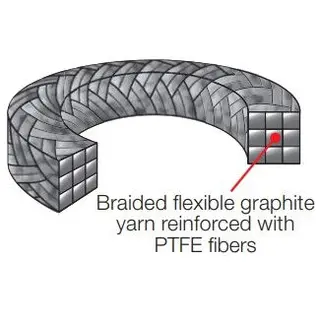

This non-metallic valve packing features yarn braided flexible graphite yarn reinforced with PTFE fiber for enhanced strength and durability. Rated for 15.5 MPaG pressure applications, it is designed specifically for control valves, offering superior sealing performance. With low emission properties, it ensures environmental safety and reliable operation in demanding industrial environments, making it an excellent choice for applications requiring precise control and leak prevention.

Request a quote

Detail Information

Product Name: Non-Metallic Yarn Braided Packing for Control Valves, Low Emission
Type: Adapter Packing
Main Materials: Flexible Graphite, PTFE Fiber Reinforced
Fluid Temperature: -270°C to +455°C (Packing temperature must be kept at 350°C or less.)
Maximum Pressure: 15.5 MPaG (Class 900 LB)

Features

Adapter-Dedicated Design: Specifically engineered for adapter applications, ensuring optimal performance.
Improved Sliding Performance: Flexible graphite yarn combined with PTFE fiber reduces friction for smooth operation.
High Mechanical Strength: Reinforced with PTFE fiber to enhance durability and strength under pressure.
Reliable Sealing: Combines the benefits of graphite and PTFE to ensure effective sealing in various valve applications.

Send your message to this supplier

Name *

Company

Email *

Phone

Message *

FAQs

What Are Rising Stem & Non-Rising Stem Gate Valves?

What is a Non-Rising Stem Gate Valve?

A valve where the stem does not move vertically but rotates internally to raise or lower the gate. This design is ideal for installations with limited vertical space.

How Does a Non-Rising Stem Gate Valve Work?

The handwheel turns the stem, which in turn moves the gate up or down inside the valve body without changing the external height of the stem.

How Does a Rising Stem Gate Valve Work?

The handwheel lifts the stem and gate together, providing a visual indication of whether the valve is open or closed.

Which Valve Should I Choose?

Use a rising stem valve for above-ground applications where visibility and ease of maintenance are important.

Use a non-rising stem valve for underground or space-limited installations.

Conclusion

The choice between rising stem and non-rising stem gate valves depends on your specific application needs. For clear valve status indication and easy maintenance, go with a rising stem valve. For compact installations, a non-rising stem valve is the better option.
