DIN 3352 Wedge Gate Valve, EN 1.0619, DN400, PN16, 16 IN, RF

The DIN 3352 Wedge Gate Valve Factory specializes in manufacturing high-quality wedge gate valves with a flexible wedge design. These valves are constructed from EN 1.0619 carbon steel, providing robustness and durability. They have a large DN400 (16-inch) size and a PN16 pressure rating, equivalent to Pressure Class 150 LB. The valves feature raised face (RF) flanged ends for secure and reliable connections, and a bare stem for easy maintenance and inspection.

Product Name: DIN 3352 Wedge Gate Valve, Flexible Wedge
Design Standard: DIN 3352
Body Material: EN 1.0619
Size: DN400, 16 Inch
Pressure: PN16, Class 150 LB
End Connection: RF Flanged
Operation: Bare Stem
Medium: Water, Oil, Gas, etc
Temperature Range: -29°C to 595°C

Wedge Gate Valves are designed and manufactured to ensure volatile organic compound (VOC) leakage is less than 100 ppm (parts per million). Extensive baseline laboratory testing, including static and cycle tests, has been conducted to establish critical design parameters for achieving low-emission sealing in both the stem packing and bonnet gasket areas. Additionally, an in-house testing procedure is regularly performed to verify that the Wedge Gate Valve consistently meets the maximum 100 ppm VOC leakage standard before shipment.

Technical Specification

» Nominal Diameter: DN50-DN1000, 2-40 Inch
» Design Pressure: PN6-PN25, Class 150, 300 LB
» Body / Bonnet / Wedge Materials:
   Cast Steel (EN 1.0619)
   Stainless Steel (EN 1.4308, EN 1.4408)
   Alloy Steel (EN 1.7335 / ASTM A217 WC6)
» Stem Material: X20Cr13 or 1.4021
» Seat Material Options: 13Cr, 18Cr, Stellite
» End Connections: RF Flange, Groove Flange, Butt Weld (BW)
» Operation Types: Handwheel, Bevel Gear, Electric, Pneumatic
» Structure Type: BB-BG-OS&Y (Bolted Bonnet, Back Seat, Outside Screw & Yoke)
» Design Standard: DIN 3352
» Face-to-Face Dimensions: EN 558-1 Series 15 (DIN 3202 F5)
» Flanged Ends: DIN 2543–2547, EN 1092-1, GOST 12815 / 12819
» Butt Weld Ends: EN 12627
» Testing & Inspection: DIN 3230

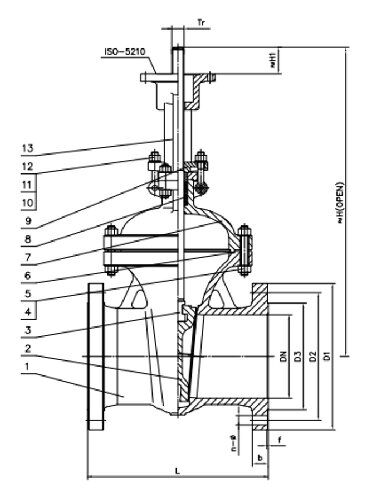

Structural Diagram

Product Features

» Anti-friction ball thrust bearing: Reduces friction between mating parts to ensure smooth operation
» Grub screw: Secures the yoke nut in the bonnet
» Grease nipple: Supplies lubricant to the mating parts
» OS&Y: Outside Stem and Yoke
» Metal-sealed: Trim #1, #5, #8, #10, etc.
» Optional locking device or stem extension
» Optional direct mounting to ISO 5211
» Full port
